Marin Rift Zone 1
Marin Rift Zone 20251799
TrailSize / XS, SM, MD, LG, XL
Manufacturer WebsiteAt a glance

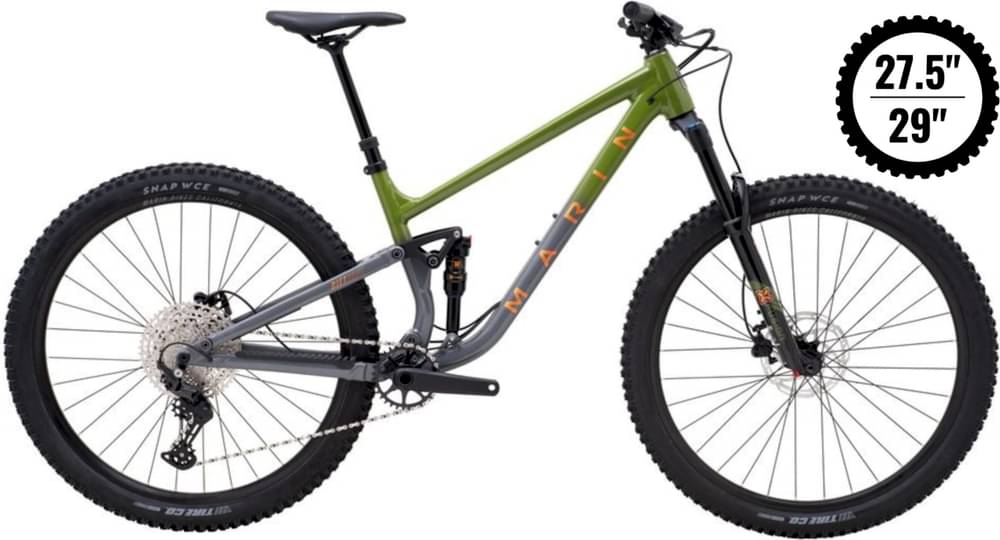

The 2025 Marin Rift Zone 1 is an Trail Aluminium / Alloy mountain bike. It is priced at $1,799 USD, comes in a range of sizes, including XS, SM, MD, LG, XL and a Shimano drivetrain. The bike is part of Marin's Rift Zone range of mountain bikes.Where To Buy
Marin
Marin Rift Zone 1Reviews
Specifications
Frameset
-
FrameSeries 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
-
ForkX-Fusion Slide (29"") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
-
ShockX-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom
Wheels
-
HubsShimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
-
WheelsMarin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
-
Spokes14g Black Stainless Steel
-
TiresVee Tire Co. Snap WCE 2.35"", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible
Drivetrain
-
ChainKMC X-11 Silver and Black
-
CrankMarin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
-
Bottom BracketExternal Sealed Cartridge Bearing
-
Rear DerailleurShimano Deore, 11-Speed, SGS
-
ShiftersShimano Deore, 11-Speed, SL-5100R
Components
-
BrakesetTektro HD-M280 Hydraulic, 180mm Rotor
-
HandlebarMarin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
-
SaddleMarin Speed Concept
-
SeatpostX-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm
-
StemMarin 3D Forged Alloy, 35mm
-
GripsMarin MTN, Closed End
-
HeadsetFSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8"" x 1 1/2”
Geometry
| Frame Size | XS | SM | MD | MD | LG | XL |
| Bottom Bracket Drop | 35mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Bottom Bracket Height | 339mm | 339mm | 339mm | 343mm | 343mm | 343mm |
| Chainstay Length | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm | 170mm | 170mm |
| Front Center | 720mm | 737mm | 759mm | 777mm | 807mm | 838mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
| Head Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° |
| Head Tube Length | 115mm | 120mm | 125mm | 115mm | 125mm | 130mm |
| Rake | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Reach | 415mm | 430mm | 450mm | 460mm | 485mm | 515mm |
| Seat Tube Angle | 77° | 77° | 77° | 77° | 77° | 77° |
| Seat Tube Length | 330mm | 390mm | 400mm | 400mm | 425mm | 430mm |
| Stack | 569.1mm | 600.7mm | 605.2mm | 637.3mm | 637.3mm | 641.8mm |
| Stack Reach Ratio | 1.371 | 1.397 | 1.345 | 1.385 | 1.314 | 1.246 |
| Standover Height | 661.7mm | 677.8mm | 687.8mm | 691.2mm | 701.7mm | 700.5mm |
| Stem Length | 35mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Top Tube Length | 552.6mm | 568.7mm | 589.7mm | 605mm | 632.1mm | 663.2mm |
| Trail | 102mm | 114mm | 114mm | 129mm | 125mm | 125mm |
| Wheel Kind Front | 27.5 | 27.5 | 27.5 | 29 | 29 | 29 |
| Wheel Kind Rear | 27.5 | 27.5 | 27.5 | 29 | 29 | 29 |
| Wheelbase | 1147.8mm | 1164.8mm | 1186.9mm | 1205.1mm | 1234.4mm | 1266.3mm |
FAQ
Q: How much is a 2025 Marin Rift Zone 1?
A 2025 Marin Rift Zone 1 is typically priced around $1,799 USD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.
Q: Where to buy a 2025 Marin Rift Zone 1?
The 2025 Marin Rift Zone 1 may be purchased directly from Marin.
Q: What size 2025 Marin Rift Zone 1 should I get?
The 2025 Marin Rift Zone 1 comes in sizes XS, SM, MD, LG, XL. After measuring your height, use the size chart below to find the typical Marin Rift Zone 1 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.
| Rider Height (cm) | Rider Height (in) | Frame Size |
|---|---|---|
| 148cm - 158cm | 4'10" - 5'2" | XS |
| 158cm - 168cm | 5'2" - 5'6" | S |
| 168cm - 178cm | 5'6" - 5' 10" | M |
| 178cm - 185cm | 5'10" - 6'1" | L |
| 185cm - 193cm | 6'1" - 6'4" | XL |
| 193cm - 198cm | 6'4" - 6'6" | XXL |
