2024

Yamaha YDX-Moro 07

Name: 2024 Yamaha YDX-Moro 07
Brand: Yamaha

E-Mountain Enduro

Compare

Size / SM, MD, LG

Manufacturer Website

At a glance

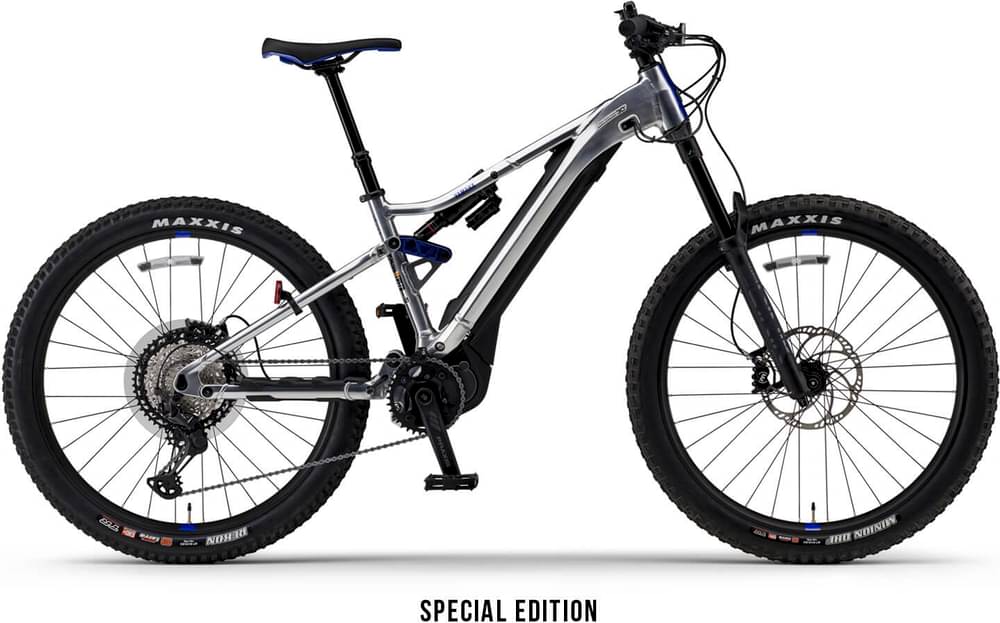

The 2024 Yamaha YDX-Moro 07 is a E-Mountain and Enduro mountain bike. It is priced at $6,399 USD, comes in a range of sizes, including SM, MD, LG, has RockShox suspension and a Shimano drivetrain. The bike is part of Yamaha's YDX-Moro range of mountain bikes. As a pedal-assisted e-mountain bike, the Yamaha YDX-Moro 07 is powered by a YAMAHA PW-X3 Class 1 Labeled, Centermount, ISIS Splined Crankarm Spindle, YAMAHA Quad Sensor with Automatic Support and Walk Assist Modes, Rate power: 250W (nominal), 500W (maximum), Max torque: 85Nm, Max speed support: 20MPH, Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist motor and a Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Anti-Vibration Mounting Plate, Weight: 6.61 lbs, 500Wh 36V, Re-charge time: 1-hour 80%, 4-hour 100% battery.

Where To Buy

Yamaha

Yamaha YDX-Moro 07

Loading more...

Reviews

Specifications

Frameset

Frame

YAMAHA Dual Twin Frame, Tapered Headtube, Internal cable/housing routing, 2-bolt drive unit mount, 12x148 rear axle spacing, Integrated YAMAHA speed sensor harness
Fork

ROCKSHOX LYRIK SELECT, 160mm TRAVEL, 35mm Stanchions, Charger RC damper with Low-speed Compression and Reboundadjust, Compatible with RockShox premium short fender, Upgradeable to new Pressure Relief Values via RockShox
Shock

ROCKSHOX SUPER DELUXE SELECT +, Custom tuned for YAMAHA YDX-MORO 07, 150mm travel, 210X55mm DebonAir+ air spring with 15 clicks of rebound adjustment, 2-position compression adjustment
Motor

YAMAHA PW-X3 Class 1 Labeled, Centermount, ISIS Splined Crankarm Spindle, YAMAHA Quad Sensor with Automatic Support and Walk Assist Modes, Rate power: 250W (nominal), 500W (maximum), Max torque: 85Nm, Max speed support: 20MPH, Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist
Battery

Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Anti-Vibration Mounting Plate, Weight: 6.61 lbs, 500Wh 36V, Re-charge time: 1-hour 80%, 4-hour 100%

Wheels

Hubs

Anodized Alloy, Centerlock brake mount, 15x110mm BOOST+ (front), 12x148mm MicroSpline freehub, Quick Release Thru Axle Type
Wheels

YAMAHA 27.5+ Alloy, Tubeless tape installed, Width: 46mm (outside) 40mm (inside)
Spokes

14g alloy SUS304
Tires

MAXXIS 27.5X2.6, Front: MINION DHF (R) REKON

Drivetrain

Chain

KMC eTURBO EPT 122 links
Crank

PRAXIS 36T
Rear Derailleur

Shimano XT RD-M8100-SGS
Shifters

Shimano XT SL-M8100-R

Components

Brakeset

MAGURA MT5 4-PISTON F/R 203MM CENTERLOCK ROTOR (F/R), Single-Finger lever
Handlebar

Alloy, 35.0 diameter, 780mm width, 30mm rise
Saddle

YAMAHA anti-slip finish with hand rail tail
Seatpost

TRANS-X dropper post 30.9 dia. TRAVEL (S) 125mm (M) 150mm (L) 170m
Stem

Alloy 4-both faceplate, 35.0 diameter, 40mm length
Grips

VELO Single Ring Lock
Headset

Integrated tapered 1 1/8” - 1 1/2” (30mm of spacers)

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	SM	MD	LG
Head Tube Angle	66.3°	66.3°	66.3°
Head Tube Length	110mm	120mm	125mm
Reach	393mm	437mm	482mm
Seat Tube Angle	70.3°	70.3°	70.3°
Stack	616mm	625mm	629mm
Stack Reach Ratio	1.567	1.43	1.305
Standover Height	741mm	751mm	759mm
Top Tube Length	572mm	619mm	666mm
Wheel Kind Front	27.5	27.5	27.5
Wheel Kind Rear	27.5	27.5	27.5

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2024 Yamaha YDX-Moro 07?

A 2024 Yamaha YDX-Moro 07 is typically priced around $6,399 USD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2024 Yamaha YDX-Moro 07?

The 2024 Yamaha YDX-Moro 07 may be purchased directly from Yamaha.

Q: What size 2024 Yamaha YDX-Moro 07 should I get?

The 2024 Yamaha YDX-Moro 07 comes in sizes SM, MD, LG. After measuring your height, use the size chart below to find the typical Yamaha YDX-Moro 07 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
