2024

Scott Spark 960

Name: 2024 Scott Spark 960
Brand: Scott

Trail

Compare

Size / SM, MD, LG, XL

Manufacturer Website

At a glance

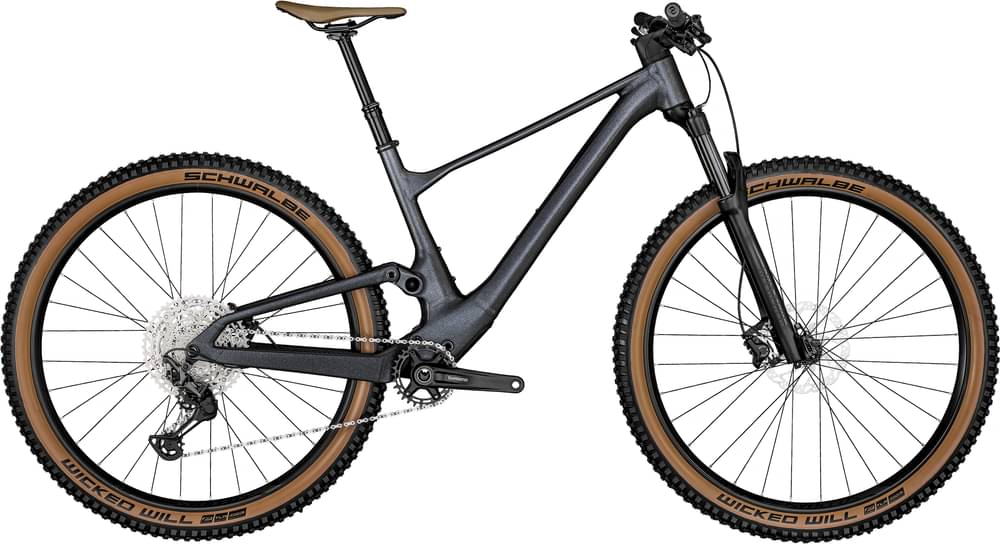

The 2024 Scott Spark 960 is an Trail Aluminium / Alloy mountain bike. It is priced at $3,399 USD, comes in a range of sizes, including SM, MD, LG, XL, has RockShox suspension and a Shimano drivetrain. The bike is part of Scott's Spark range of mountain bikes.

Where To Buy

Scott

Scott Spark 960

Loading more...

Reviews

Specifications

Frameset

Frame

Spark Alloy SL 6011; Integrated Suspension Technology; Flex Pivot / Adjustable head angle; Syncros Cable Integration System; BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork

RockShox Judy Silver TK Solo Air; 15x110mm QR axle / 42mm offset / Tapered Steerer; 2-Modes / Reb. Adj. / Lockout / 130mm travel
Shock

X-Fusion NUDE 5 RLX Trunnion; SCOTT custom w. travel / geo adj.; 3 modes: Lockout-Traction Control-Descend; Reb. Adj.; Travel 120-80-Lockout / T165X45mm

Wheels

Hubs

Shimano FH-MT410-B CL / 12x148mm / Micro Spline
Wheels

Syncros X-30SE / 32H / 30mm
Spokes

Stainless Black 15G / 1.8mm
Tires

Front: Schwalbe Wicked Will / 29x2.4""; Performance / TLR / Foldable / Addix
Rear: Schwalbe Wicked Will 29x2.4"; Performance / TLR / Foldable / Addix

Drivetrain

Chain

KMC X12
Crank

Shimano FC-MT512-1; 55mm CL / 32T
Bottom Bracket

Shimano BB-MT500 / shell 41x92mm
Rear Derailleur

Shimano XT RD-M8100 SGS; Shadow Plus / 12 Speed
Shifters

Shimano Deore SL-M6100-R / Rapidfire Plus

Components

Brakeset

Shimano MT501 Disc
Handlebar

Syncros Fraser 2.0 DC Alloy 6061 D.B.; mini Rise / back sweep 8° / 760mm; Syncros Pro lock-on grips
Saddle

Syncros Tofino 2.5 Regular
Seatpost

Syncros Duncan Dropper Post 2.5; 31.6mm / S & M size 125mm / L & XL size 150mm
Stem

Syncros DC 3.0; Syncros Cable Integration System; 0° rise / 6061 Alloy / 31.8mm / 1 1/8""
Headset

Syncros - Acros Angle adjust & Cable Routing HS System; +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	SM	MD	LG	XL
Bottom Bracket Drop	43.5mm	43.5mm	43.5mm	43.5mm
Bottom Bracket Height	331.5mm	331.5mm	331.5mm	331.5mm
Chainstay Length	437.5mm	437.5mm	437.5mm	437.5mm
Crank Length	170mm	175mm	175mm	175mm
Front Center	711mm	740mm	771mm	802mm
Head Tube Angle	65.8°	65.8°	65.8°	65.8°
Head Tube Length	90mm	90mm	105mm	115mm
Rake	42mm	41mm	38mm	35mm
Reach	410mm	440mm	470mm	500mm
Seat Tube Angle	75.7°	75.9°	76.4°	76.7°
Seat Tube Length	415mm	440mm	490mm	540mm
Stack	607.5mm	607.5mm	617.7mm	627mm
Stack Reach Ratio	1.482	1.381	1.314	1.254
Standover Height	759mm	767mm	778mm	801mm
Stem Length	50mm	60mm	60mm	70mm
Top Tube Length	561mm	589mm	613mm	641mm
Trail	107mm	107mm	107mm	107mm
Wheel Kind Front	29	29	29	29
Wheel Kind Rear	29	29	29	29
Wheelbase	1145mm	1174mm	1205mm	1236mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2024 Scott Spark 960?

A 2024 Scott Spark 960 is typically priced around $3,399 USD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2024 Scott Spark 960?

The 2024 Scott Spark 960 may be purchased directly from Scott.

Q: What size 2024 Scott Spark 960 should I get?

The 2024 Scott Spark 960 comes in sizes SM, MD, LG, XL. After measuring your height, use the size chart below to find the typical Scott Spark 960 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
