2024

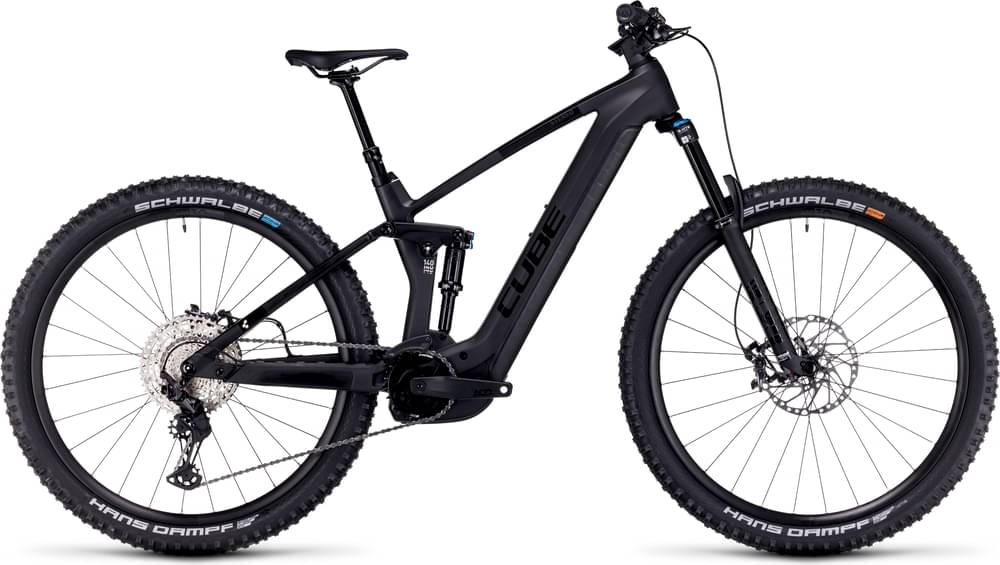

Cube STEREO HYBRID 140 HPC, SLX 750

Name: 2024 Cube STEREO HYBRID 140 HPC, SLX 750
Brand: Cube

E-Mountain Trail

Compare

Size / SM, MD, LG, XL

Manufacturer Website

At a glance

The 2024 Cube STEREO HYBRID 140 HPC, SLX 750 is a E-Mountain and Trail Aluminium / Alloy mountain bike. It is priced at €5,299 EUR, comes in a range of sizes, including SM, MD, LG, XL, has Fox suspension and a Shimano drivetrain. The bike is part of Cube's STEREO HYBRID range of mountain bikes. As a pedal-assisted e-mountain bike, the Cube STEREO HYBRID 140 HPC, SLX 750 is powered by a Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System motor and a Bosch PowerTube 750 battery.

Where To Buy

Cube

Cube STEREO HYBRID 140 HPC, SLX 750

Loading more...

Reviews

Specifications

Frameset

Frame

C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
Fork

Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Tune, 150mm
Shock

Fox Float DPS EVOL, 205x60mm (27.5: 185x55mm), Open/Medium/Firm Mode, Trunnion Mount
Motor

Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery

Bosch PowerTube 750

Wheels

Wheels

Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires

Front: Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
Rear: Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6

Drivetrain

Chain

Shimano CN-M6100
Crank

ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
Rear Derailleur

Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters

Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus

Components

Brakeset

Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Handlebar

Newmen Evolution SL 318.25, 780mm
Saddle

Natural Fit Venec
Seatpost

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Stem

CUBE Performance Stem E-MTB, 31.8mm
Grips

ACID Disrupt, Soft Compound
Headset

ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2"" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	SM	MD	LG	XL
Bottom Bracket Drop	16mm	36mm	36mm	36mm
Bottom Bracket Height	339mm	319mm	319mm	338mm
Chainstay Length	450mm	457mm	457mm	457mm
Crank Length	165mm	165mm	165mm	165mm
Front Center	737mm	766mm	797mm	828mm
Handlebar Width	780mm	780mm	780mm	780mm
Head Tube Angle	66°	66°	66°	66°
Head Tube Length	120mm	108mm	120mm	138mm
Rake	44mm	51mm	51mm	51mm
Reach	426mm	447mm	473mm	497mm
Rear Travel	140mm	140mm	140mm	140mm
Seat Tube Angle	76°	75.5°	75.5°	75.5°
Seat Tube Length	370mm	420mm	460mm	490mm
Stack	607mm	626mm	637mm	653mm
Stack Reach Ratio	1.425	1.4	1.347	1.314
Stem Angle	12°	12°	12°	12°
Stem Length	50mm	50mm	50mm	60mm
Top Tube Length	570mm	600mm	630mm	660mm
Trail	110mm	102mm	102mm	111mm
Wheel Kind Front	27.5	27.5	27.5	29
Wheel Kind Rear	27.5	27.5	27.5	29
Wheelbase	1187mm	1221mm	1252mm	1283mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2024 Cube STEREO HYBRID 140 HPC, SLX 750?

A 2024 Cube STEREO HYBRID 140 HPC, SLX 750 is typically priced around €5,299 EUR when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2024 Cube STEREO HYBRID 140 HPC, SLX 750?

The 2024 Cube STEREO HYBRID 140 HPC, SLX 750 may be purchased directly from Cube.

Q: What size 2024 Cube STEREO HYBRID 140 HPC, SLX 750 should I get?

The 2024 Cube STEREO HYBRID 140 HPC, SLX 750 comes in sizes SM, MD, LG, XL. After measuring your height, use the size chart below to find the typical Cube STEREO HYBRID 140 HPC, SLX 750 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
