Polygon Collosus TLE 0
Polygon COLLOSUS 20247999
E-Mountain EnduroSize / SM, MD, LG, XL
Manufacturer WebsiteAt a glance

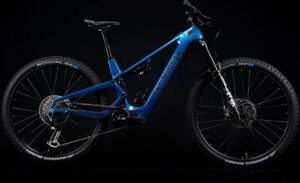

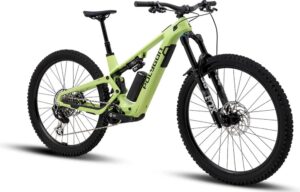

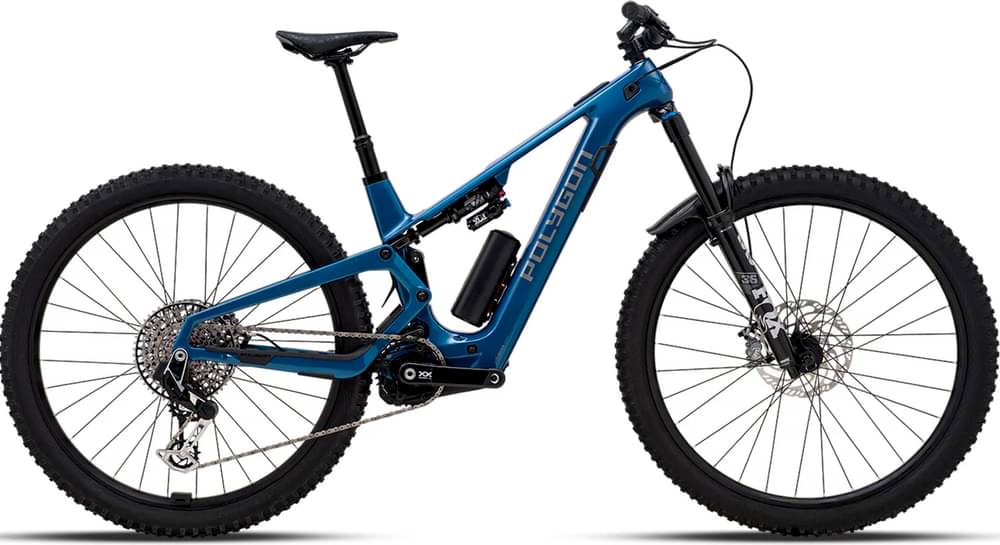

The 2024 Polygon Collosus TLE 0 is a E-Mountain and Enduro Carbon mountain bike. It is priced at $7,999 USD, comes in a range of sizes, including SM, MD, LG, XL, has Fox suspension and a SRAM drivetrain. The bike is part of Polygon's COLLOSUS range of mountain bikes. As a pedal-assisted e-mountain bike, the Polygon Collosus TLE 0 is powered by a Bosch Performance Line SX, 250W, 36V up to 340% of assistance, 55 Nm Torque motor and a Bosch Compact Tube 400wh, 36V, Lithium-ion, With Bosch PowerMore 250Wh Range Extender battery.Where To Buy
Polygon
Polygon Collosus TLE 0Reviews
Specifications
Frameset
-

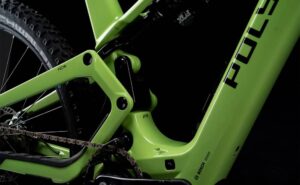

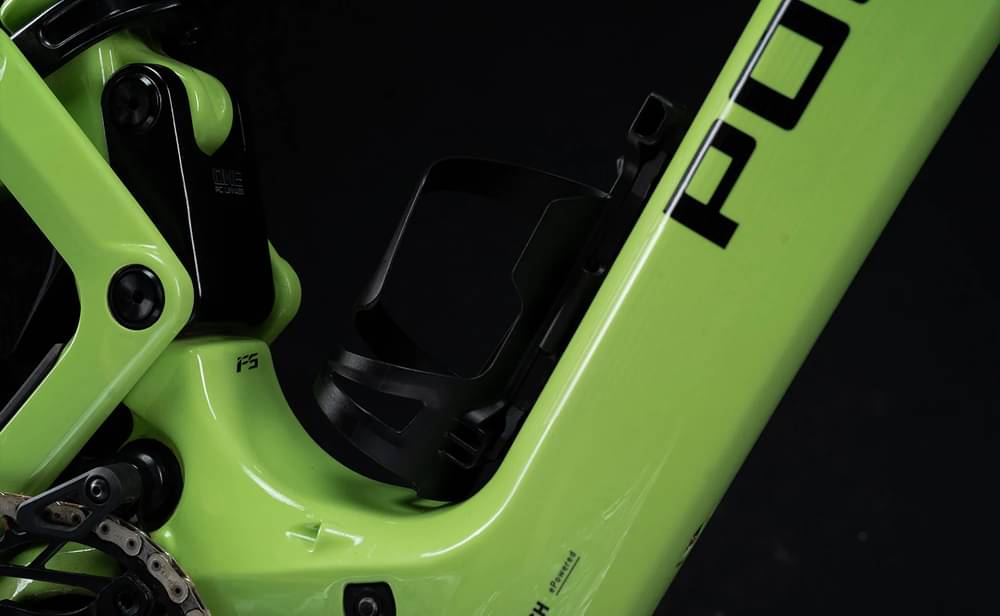

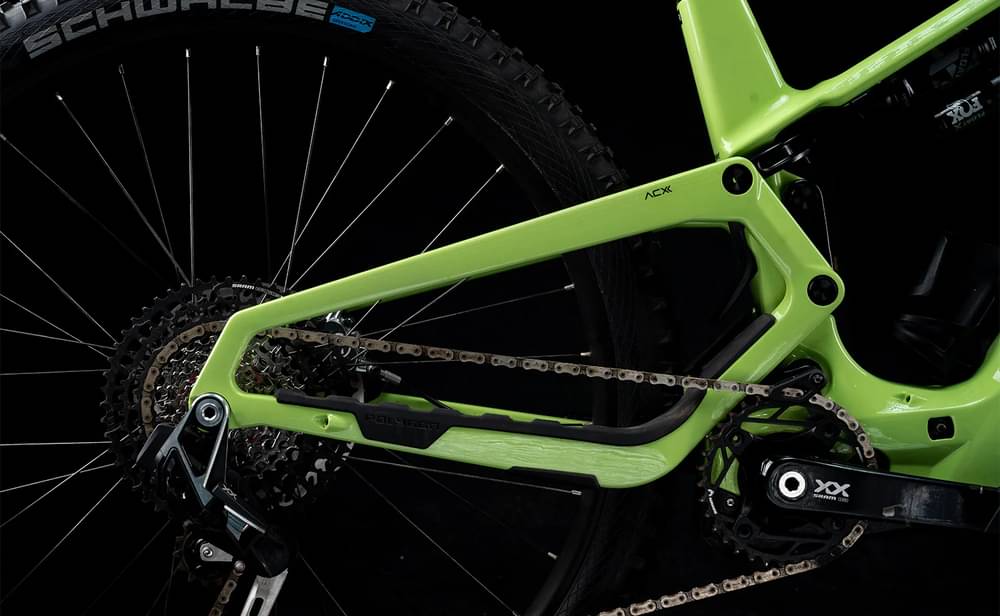

FrameACX E-trail Full carbon frame with single-piece rear triangle, T-Type compatible (UDH hanger), 34.9mm seat tube diameter
-
ForkFOX Performance Elite 36, GRIP2 Damper, FLOAT EVOL, 160mm Travel, 44mm Offset, HSC/LSC & HSR/LSR Adjust, w/ Fender
-
ShockFOX Float X Performance Elite, Air Spring, 2-Position Adjust, LSC/LSR, 210x55mm
-

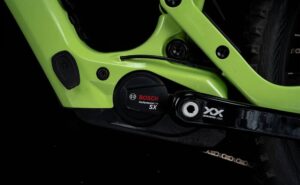

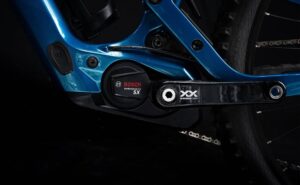

MotorBosch Performance Line SX, 250W, 36V up to 340% of assistance, 55 Nm Torque
-

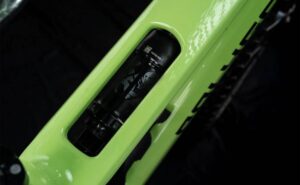

BatteryBosch Compact Tube 400wh, 36V, Lithium-ion, With Bosch PowerMore 250Wh Range Extender
Wheels
-
HubsDT Swiss 370 Hybrid Classic rear hub, 12x148mm, 32H, 6B, XD driver.
-
WheelsPolygon MT6 Alloy Double Wall front rim, 32H, Internal Width: 30mm, Tubeless Ready **
-
TiresSchwalbe Hans Dampf Evo 29""x2.60", Super Trail, TLE, Addix SpeedGrip, Tubeless Ready **
Drivetrain
-
ChainSRAM XX Eagle Chain, 12-Speed
-
Crank34T
-
Rear DerailleurSRAM XX AXS Eagle T-Type, 12-Speed
-
ShiftersSRAM EC AXS Pod Controller
Components
-

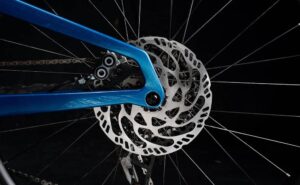

BrakesetFront: Magura MT7 4-piston Hydraulic Brakes with Magura HC3 levers
Rear: Magura MT7 4-piston Hydraulic Brakes with Magura HC3 levers -

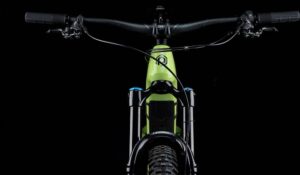

HandlebarRace Face Aeffect R 35, Width: 780mm, Bar Bore: 35mm
-
SaddleXTENT, CR-MO ø 7mm
-

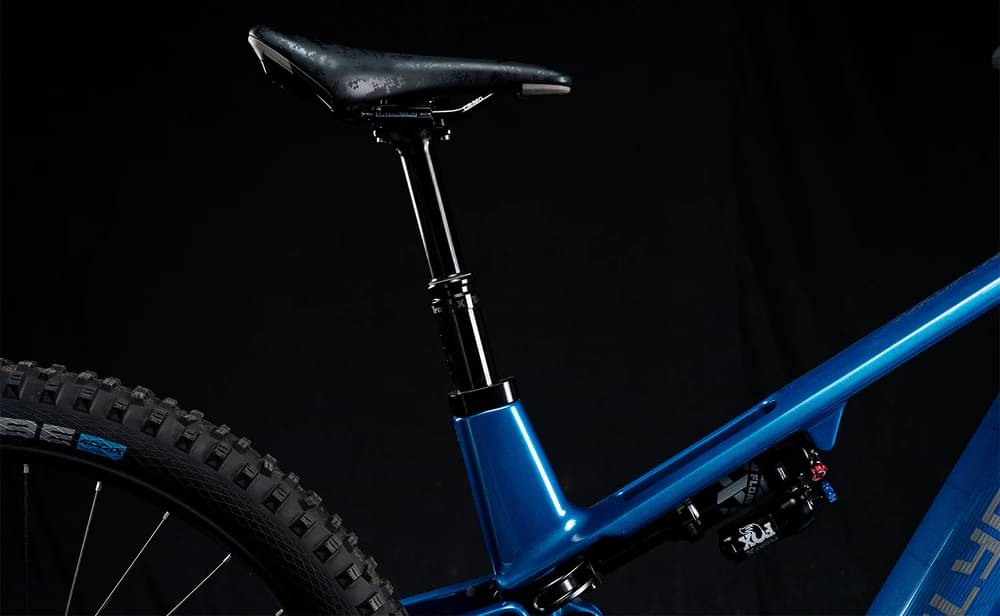

SeatpostTranz X JD-YSP39KL Dropper Seatpost, 150mm (S, M) / 200mm (L, XL) travel, 0mm offset
-
StemRace Face Aeffect R 35, Length: 40mm, Bar Bore: 35mm, Rise/Drop: 0Deg
-
HeadsetFSA NO42/47/ACB, IS 42/28.6
Geometry
| Frame Size | SM | MD | LG | XL |
| Bottom Bracket Drop | 35mm | 35mm | 35mm | 35mm |
| Bottom Bracket Height | 343mm | 343mm | 343mm | 343mm |
| Chainstay Length | 450mm | 450mm | 450mm | 450mm |
| Front Center | 767mm | 794mm | 818mm | 845mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm |
| Head Tube Angle | 64° | 64° | 64° | 64° |
| Head Tube Length | 90mm | 95mm | 105mm | 120mm |
| Rake | 44mm | 43mm | 42mm | 43mm |
| Reach | 435mm | 461mm | 481mm | 501mm |
| Seat Tube Angle | 72° | 73° | 73° | 73° |
| Seat Tube Length | 390mm | 400mm | 415mm | 430mm |
| Stack | 614mm | 619mm | 628mm | 642mm |
| Stack Reach Ratio | 1.411 | 1.343 | 1.306 | 1.281 |
| Standover Height | 748mm | 757mm | 764mm | 770mm |
| Top Tube Length | 586mm | 607mm | 627mm | 648mm |
| Trail | 134mm | 135mm | 136mm | 135mm |
| Wheel Kind Front | 29 | 29 | 29 | 29 |
| Wheel Kind Rear | 29 | 29 | 29 | 29 |
| Wheelbase | 1215mm | 1242mm | 1266mm | 1293mm |
FAQ
Q: How much is a 2024 Polygon Collosus TLE 0?
A 2024 Polygon Collosus TLE 0 is typically priced around $7,999 USD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.
Q: Where to buy a 2024 Polygon Collosus TLE 0?
The 2024 Polygon Collosus TLE 0 may be purchased directly from Polygon.
Q: What size 2024 Polygon Collosus TLE 0 should I get?
The 2024 Polygon Collosus TLE 0 comes in sizes SM, MD, LG, XL. After measuring your height, use the size chart below to find the typical Polygon Collosus TLE 0 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.
| Rider Height (cm) | Rider Height (in) | Frame Size |
|---|---|---|
| 148cm - 158cm | 4'10" - 5'2" | XS |
| 158cm - 168cm | 5'2" - 5'6" | S |
| 168cm - 178cm | 5'6" - 5' 10" | M |
| 178cm - 185cm | 5'10" - 6'1" | L |
| 185cm - 193cm | 6'1" - 6'4" | XL |
| 193cm - 198cm | 6'4" - 6'6" | XXL |
