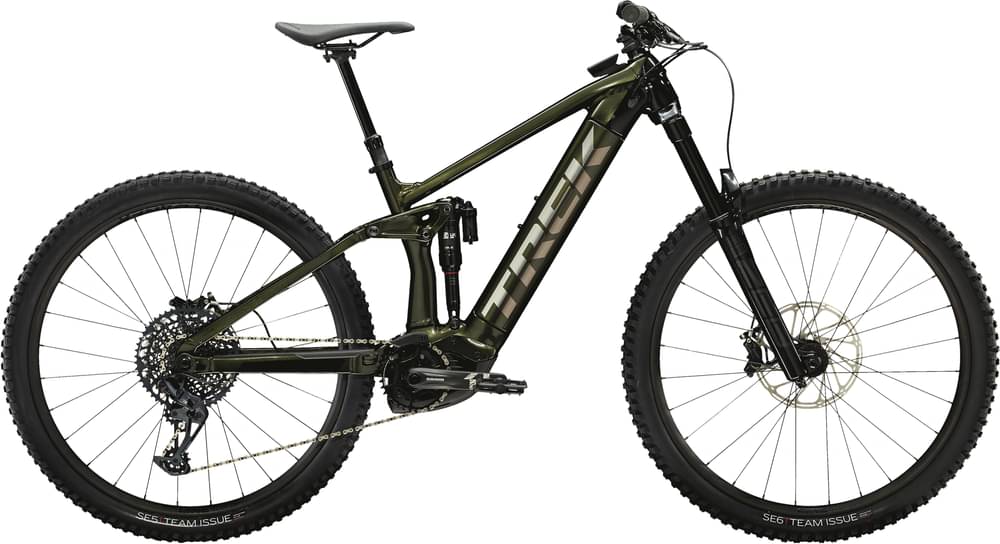

Trek Rail 9 GX

Frameset

• Frame

  Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
• Fork

  RockShox ZEB Select, RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
• Shock

  NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5 mm
• Motor

  Bosch, Bosch PowerTube 625
• Battery

  Bosch 625Wh, Bosch PowerTube 625

Wheels

• Hubs

  Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
• Wheels

  Bontrager Line 30, Tubeless Ready, 28-hole, Presta valve
• Wheel Size

  29"
• Tires

  Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"; Size: S, M, L, XL, Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"

Drivetrain

• Chain

  SRAM GX Eagle, SRAM GX Eagle, 12-speed
• Crank

  SRAM X1, SRAM X1 1000, 34T, 165 mm length
• Rear Derailleur

  SRAM GX Eagle, SRAM GX Eagle
• Shifters

  SRAM GX Eagle, SRAM GX Eagle, 12-speed

Components

• Brakeset

  SRAM Code R, Size: S, M, L, XL, SRAM Code R hydraulic disc; Size: S, M, L, XL, SRAM Code R 4-piston hydraulic disc
• Handlebar

  Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
• Saddle

  Bontrager Arvada, hollow chromoly rails, 138 mm width
• Seatpost

  Size: S, Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length; Size: M, Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 440 mm length; Size: L, XL, Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 480 mm length
• Stem

  Bontrager Elite, 35 mm, 0-degree, 45 mm length
• Grips

  Bontrager XR Trail Elite, nylon lock-on
