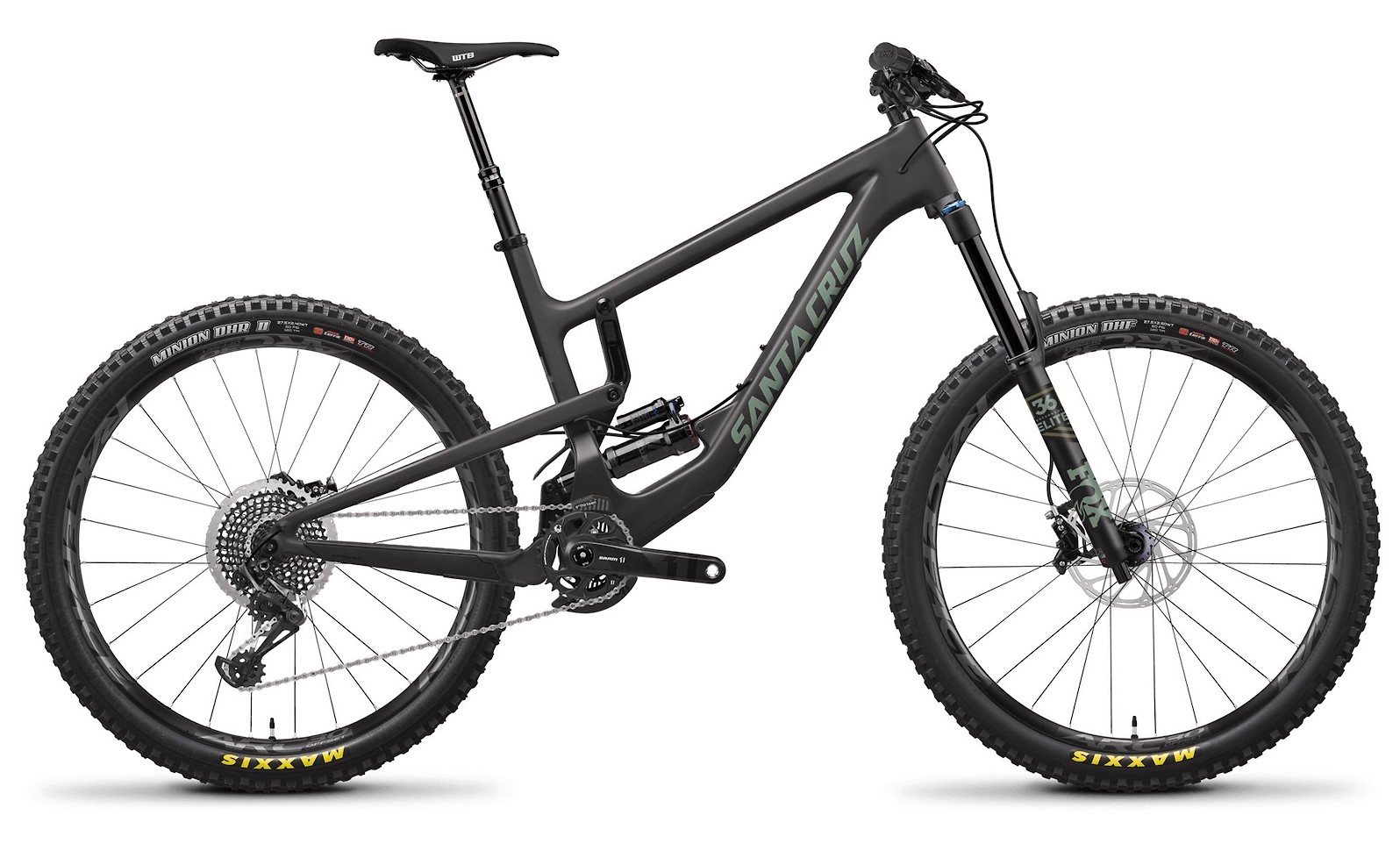

Santa Cruz Nomad Carbon CC X01

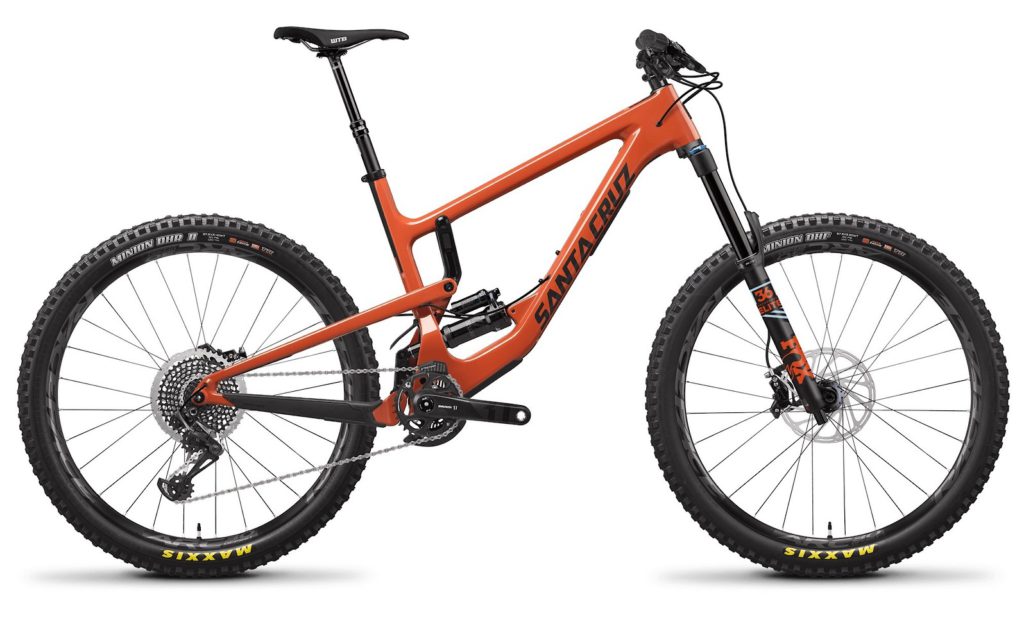

Santa Cruz Nomad 2019 EnduroColour / Orange/Carbon, Carbon/Olive
Size / XS (High, Low), S (High, Low), M (High, Low), L (High, Low), XL (High, Low)
Manufacturer WebsiteAt a glance
The 2019 Santa Cruz Nomad Carbon CC X01 is an Enduro Carbon mountain bike. It sports 27.5" wheels, comes in a range of sizes, including XS (High, Low), S (High, Low), M (High, Low), L (High, Low), XL (High, Low), has Fox suspension and a SRAM drivetrain. The bike is part of Santa Cruz's Nomad range of mountain bikes.170mm VPP travel, Progressive lower-link shock configuration, Metric shock sizing, Bolt-on shuttle guard, downtube protector and shock fender, Air and coil shock compatibility, 180mm post mount brake
Where To Buy
Santa Cruz
Santa Cruz Nomad Carbon CC X01Reviews
Specifications
Frameset
-
FrameCarbon CC with internal cable routing and built in chainstay protection
-
ForkFOX 36 Float Performance Elite, 170mm
-
ShockRockShox Super Deluxe RCT, Option: RockShox Super Deluxe Coil RCT, 400lb XS-S, 450lb M-L, 500lb XL
Wheels
-
HubsFront: DT Swiss 350, 15mm x 110mm
Rear: DT Swiss 350, XD driver, 12mm x 148mm -
WheelsRace Face ARC Offset 30, 28 hole, Optional upgrade: Santa Cruz Reserve 30 Carbon
-
Wheel Size27.5"
-
SpokesDT Swiss Competition
-
TiresFront: Maxxis Minion DHF, 2.5" 3C Silkshield
Rear: Maxxis Minion DHR II, 2.4" 3C Silkshield
Drivetrain
-
Chain430mm, 431mm, , 32 tooth, SRAM X01 Eagle
-
CrankSRAM X1 Eagle Carbon 148 DUB, 170mm (XS-S), 175mm (M-XL)
-
Bottom Bracket344mm, 339mm, 73mm threaded
-
Rear DerailleurSRAM X01 Eagle
-
ShiftersSRAM X01 Eagle, 12-speed
Components
-
BrakesetSRAM Code RSC with Avid Centerline 200mm rotors, SRAM Code RSC
-
HandlebarSCB AM Carbon
-
SaddleWTB Silverado Team
-
SeatpostRockShox Reverb Stealth, 31.6mm, Standard single bolt, 31.6mm, Standard single bolt
-
StemRace Face Aeffect R, 50mm length
-
GripsSanta Cruz Palmdale
-
HeadsetCane Creek 40 IS Integrated
FAQ
Q: Where to buy a 2019 Santa Cruz Nomad Carbon CC X01?
The 2019 Santa Cruz Nomad Carbon CC X01 may be purchased directly from Santa Cruz.
Q: What size wheels does the 2019 Santa Cruz Nomad Carbon CC X01 have?
The 2019 Santa Cruz Nomad Carbon CC X01 has 27.5" wheels.
Q: What size 2019 Santa Cruz Nomad Carbon CC X01 should I get?
The 2019 Santa Cruz Nomad Carbon CC X01 comes in sizes XS (High, Low), S (High, Low), M (High, Low), L (High, Low), XL (High, Low). After measuring your height, use the size chart below to find the typical Santa Cruz Nomad Carbon CC X01 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.
| Rider Height (cm) | Rider Height (in) | Frame Size |
|---|---|---|
| 148cm - 158cm | 4'10" - 5'2" | XS |
| 158cm - 168cm | 5'2" - 5'6" | S |
| 168cm - 178cm | 5'6" - 5' 10" | M |
| 178cm - 185cm | 5'10" - 6'1" | L |
| 185cm - 193cm | 6'1" - 6'4" | XL |
| 193cm - 198cm | 6'4" - 6'6" | XXL |
