2025

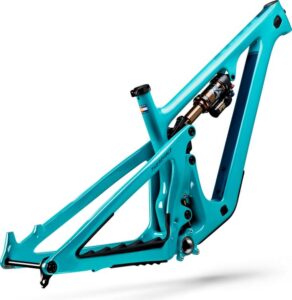

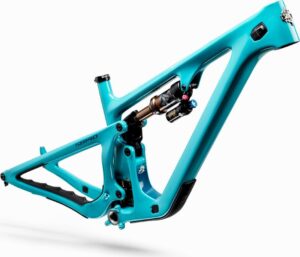

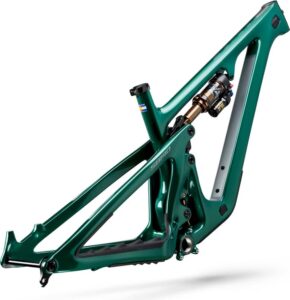

Yeti SB140 T/Series Frameset

Name: 2025 Yeti SB140 T/Series Frameset
Brand: Yeti

Trail

Compare

Size / SM, MD, LG, XL, XXL

Manufacturer Website

At a glance

The 2025 Yeti SB140 T/Series Frameset is an Trail Carbon mountain bike. It is priced at $4,400 USD and comes in a range of sizes, including SM, MD, LG, XL, XXL. The bike is part of Yeti's SB140 range of mountain bikes.

Where To Buy

Yeti

Yeti SB140 T/Series Frameset

Loading more...

Reviews

Specifications

Frameset

Frame

TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Shock

FOX FACTORY FLOAT X

Wheels

Drivetrain

Bottom Bracket

BSA, 73mm, threaded

Components

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	SM	MD	LG	XL	XXL
Bottom Bracket Drop	35mm	35mm	35mm	35mm	35mm
Bottom Bracket Height	339mm	339mm	339mm	339mm	339mm
Chainstay Length	436mm	438mm	440mm	442mm	444mm
Front Center	748mm	779mm	802mm	831mm	856mm
Head Tube Angle	65.4°	65.4°	65.4°	65.4°	65.4°
Head Tube Length	92mm	95mm	100mm	112mm	134mm
Rake	44mm	44mm	44mm	44mm	44mm
Reach	435mm	465mm	485mm	510mm	525mm
Seat Tube Angle	77.5°	77.5°	77.5°	77.4°	77.4°
Seat Tube Length	365mm	400mm	440mm	470mm	485mm
Stack	614mm	617mm	621mm	631mm	651mm
Stack Reach Ratio	1.411	1.327	1.28	1.237	1.24
Standover Height	722mm	729mm	733mm	735mm	740mm
Top Tube Length	571mm	602mm	623mm	650mm	670mm
Trail	122mm	123mm	121mm	122mm	121mm
Wheel Kind Front	29	29	29	29	29
Wheel Kind Rear	29	29	29	29	29
Wheelbase	1184mm	1217mm	1242mm	1273mm	1300mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2025 Yeti SB140 T/Series Frameset?

A 2025 Yeti SB140 T/Series Frameset is typically priced around $4,400 USD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2025 Yeti SB140 T/Series Frameset?

The 2025 Yeti SB140 T/Series Frameset may be purchased directly from Yeti.

Q: What size 2025 Yeti SB140 T/Series Frameset should I get?

The 2025 Yeti SB140 T/Series Frameset comes in sizes SM, MD, LG, XL, XXL. After measuring your height, use the size chart below to find the typical Yeti SB140 T/Series Frameset size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
