2025

Whyte ELyte EVO Stag Works

Name: 2025 Whyte ELyte EVO Stag Works
Brand: Whyte

E-Mountain Enduro

Compare

Size / MD, LG, XL

Manufacturer Website

At a glance

The 2025 Whyte ELyte EVO Stag Works is a E-Mountain and Enduro Carbon mountain bike. It is priced at £9,999 GBP, comes in a range of sizes, including MD, LG, XL, has Fox suspension and a SRAM drivetrain. The bike is part of Whyte's ELyte range of mountain bikes.

Where To Buy

Whyte

Whyte ELyte EVO Stag Works

Loading more...

Reviews

Specifications

Frameset

Frame

Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Fork

Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 15mm Kabolt axle

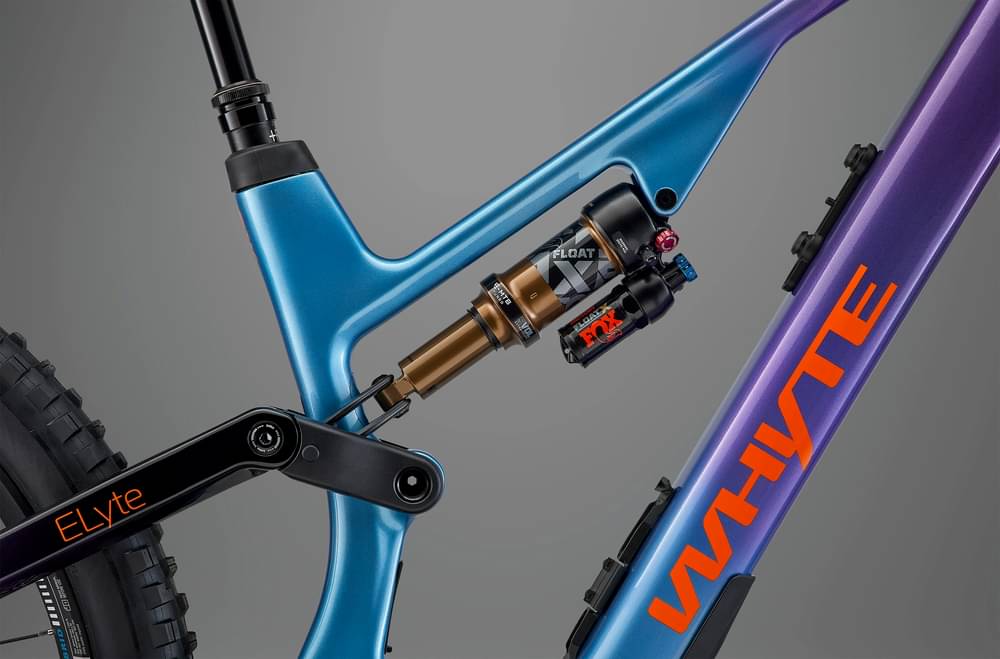

Shock

Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm, custom tuned for Whyte

Wheels

Hubs

Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
Wheels

DT HX531, 30mm Internal
Spokes

DT Swiss Elemental
Tires

Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear

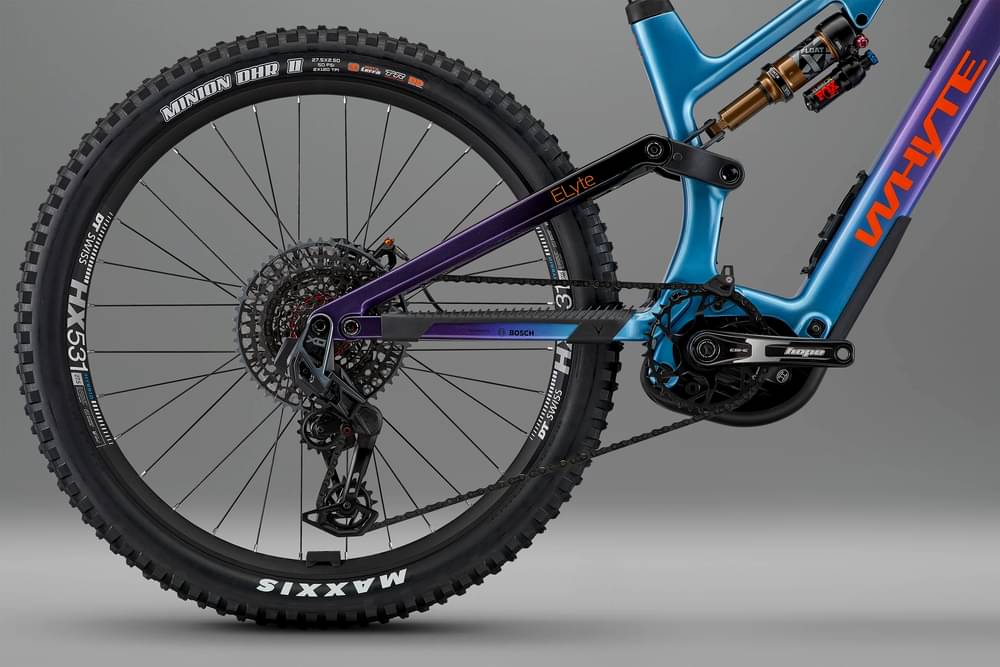

Drivetrain

Chain

SRAM XO T-Type, 12 speed
Crank

Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type
Rear Derailleur

SRAM XO T-Type AXS, 12 speed
Shifters

SRAM AXS Pod, right, MMX, 12 speed

Components

Brakeset

Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor
Handlebar

Race Face ERA Carbon, 20mm rise, 35mm bar bore, 800mm wide
Saddle

Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Seatpost

Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
Stem

Whyte Trail full CNC, 32mm extension, 35mm bar bore
Grips

Whyte Enduro lock-on
Headset

FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	MD	LG	XL
Bottom Bracket Height	341.9mm	341.9mm	341.9mm
Chainstay Length	450.4mm	450.4mm	450.4mm
Head Tube Angle	64.6°	64.6°	64.6°
Head Tube Length	127mm	140mm	152mm
Reach	456mm	481mm	506mm
Seat Tube Angle	77.3°	77.1°	76.9°
Seat Tube Length	420mm	445mm	470mm
Stack	640.5mm	652.3mm	663.2mm
Stack Reach Ratio	1.405	1.356	1.311
Standover Height	741mm	741mm	741mm
Wheel Kind Front	29	29	29
Wheel Kind Rear	27.5	27.5	27.5
Wheelbase	1242.1mm	1272.6mm	1302.7mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2025 Whyte ELyte EVO Stag Works?

A 2025 Whyte ELyte EVO Stag Works is typically priced around £9,999 GBP when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2025 Whyte ELyte EVO Stag Works?

The 2025 Whyte ELyte EVO Stag Works may be purchased directly from Whyte.

Q: What size 2025 Whyte ELyte EVO Stag Works should I get?

The 2025 Whyte ELyte EVO Stag Works comes in sizes MD, LG, XL. After measuring your height, use the size chart below to find the typical Whyte ELyte EVO Stag Works size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
