2025

Transition Sentinel Carbon Deore

Name: 2025 Transition Sentinel Carbon Deore
Brand: Transition

Enduro

Compare

Size / XS, SM, MD, LG, XL, XXL

Manufacturer Website

At a glance

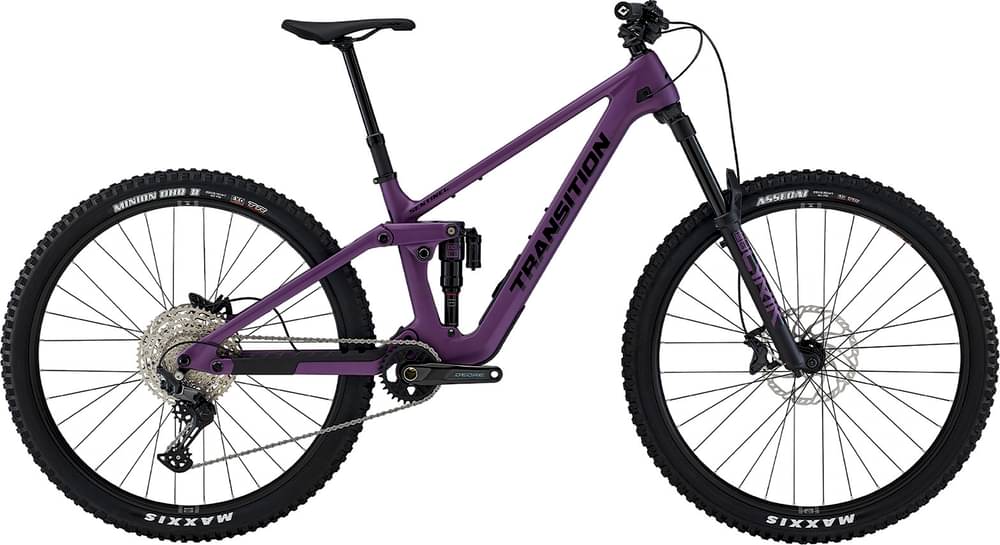

The 2025 Transition Sentinel Carbon Deore is an Enduro Carbon mountain bike. It is priced at $4,899 USD, comes in a range of sizes, including XS, SM, MD, LG, XL, XXL, has RockShox suspension and a Shimano drivetrain. The bike is part of Transition's SENTINEL range of mountain bikes.

Where To Buy

Transition

Transition Sentinel Carbon Deore

Loading more...

Reviews

Specifications

Frameset

Frame

Sentinel Carbon 150mm
Fork

RockShox Lyrik Base, (160mm)
Shock

RockShox Super Deluxe Select, (205x60mm)

Wheels

Hubs

Novatech D791SB/D902SB
Wheels

WTB ST i30
Spokes

Pillar Double Butted
Tires

Front: Maxxis Assegai 3C EXO/TR (2.5)
Rear: Maxxis Minion DHRII 3C EXO/TR (2.4)

Drivetrain

Chain

Shimano Deore M6100
Crank

Shimano Deore M6100, (30t/165mm)
Bottom Bracket

73mm BSA Threaded
Rear Derailleur

Shimano Deore M6100 SGS 12sp
Shifters

Shimano Deore M6100 iSpec EV

Components

Brakeset

Shimano Deore M6120 4 Piston
Handlebar

RaceFace Chester, XS/SM (800x20mm), MD/LG/XL/XXL (800x35mm)
Saddle

SDG Bel Air 3
Seatpost

SDG Tellis, XS (125mm), SM (150mm), MD (170mm), LG (200mm), XL/XXL (230mm)
Stem

RaceFace Aeffect R (40mm)
Grips

ODI Elite Flow Lock-On
Headset

FSA No.57E

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	XS	SM	MD	LG	XL	XXL
Bottom Bracket Drop	15mm	25mm	25mm	25mm	25mm	25mm
Bottom Bracket Height	340mm	350mm	350mm	350mm	350mm	350mm
Chainstay Length	434mm	442mm	442mm	446mm	446mm	446mm
Front Center	737mm	767mm	796mm	826mm	855mm	885mm
Head Tube Angle	64°	64°	64°	64°	64°	64°
Head Tube Length	100mm	100mm	110mm	120mm	130mm	140mm
Rake	37mm	44mm	45mm	44mm	44mm	44mm
Reach	415mm	430mm	455mm	480mm	505mm	530mm
Seat Tube Angle	79.2°	78.7°	77.9°	77.3°	76.8°	76.5°
Seat Tube Length	360mm	360mm	390mm	430mm	460mm	490mm
Stack	592mm	615mm	621mm	633mm	642mm	651mm
Stack Reach Ratio	1.427	1.43	1.365	1.319	1.271	1.228
Top Tube Length	534mm	557mm	586mm	614mm	642mm	670mm
Trail	132mm	134mm	133mm	134mm	134mm	134mm
Wheel Kind Front	27.5	29	29	29	29	29
Wheel Kind Rear	27.5	29	29	29	29	29
Wheelbase	1171mm	1208mm	1237mm	1271mm	1300mm	1330mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2025 Transition Sentinel Carbon Deore?

A 2025 Transition Sentinel Carbon Deore is typically priced around $4,899 USD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2025 Transition Sentinel Carbon Deore?

The 2025 Transition Sentinel Carbon Deore may be purchased directly from Transition.

Q: What size 2025 Transition Sentinel Carbon Deore should I get?

The 2025 Transition Sentinel Carbon Deore comes in sizes XS, SM, MD, LG, XL, XXL. After measuring your height, use the size chart below to find the typical Transition Sentinel Carbon Deore size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
