2025

Merida eONE-FORTY 475

Name: 2025 Merida eONE-FORTY 475
Brand: Merida

E-Mountain Trail

Compare

Size / X-Short, Short, Mid, Long, X-Long

Manufacturer Website

At a glance

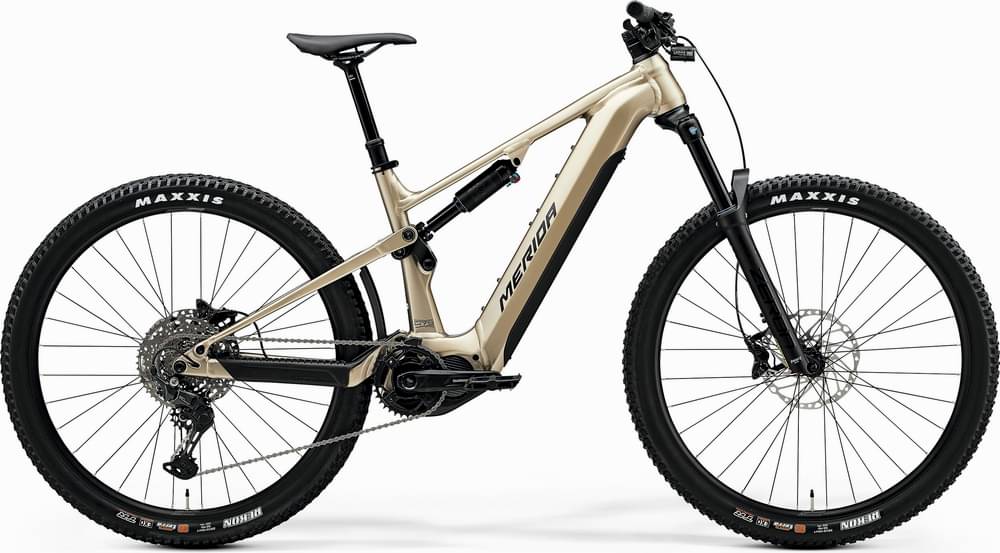

The 2025 Merida eONE-FORTY 475 is a E-Mountain and Trail Aluminium / Alloy mountain bike. It comes in a range of sizes, including X-Short, Short, Mid, Long, X-Long and a Shimano drivetrain. The bike is part of Merida's eONE-FORTY range of mountain bikes. As a pedal-assisted e-mountain bike, the Merida eONE-FORTY 475 is powered by a Shimano EP801, 85Nm motor and a Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable battery.

Where To Buy

Merida

Merida eONE-FORTY 475

Loading more...

Reviews

Specifications

Frameset

Frame

eONE-FORTY LITE IV, material: aluminium, 133mm suspension travel, 27.5x2.8"" max. wheelsize, 148x12mm axle standard, intube
Fork

SR Sunotur Zeron 36X, Air, 150mm suspension travel, Tapered, 44mm fork off set, 29x2.6"" max wheelsize
Shock

SR Suntour Edge Plus, platform
Motor

Shimano EP801, 85Nm
Battery

Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable

Wheels

Hubs

Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Wheels

MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29""
Spokes

Black stainless
Tires

Maxxis Rekon, 29x2.4"", fold, TR 3C EXO MaxxTerra

Drivetrain

Chain

Shimano LG500
Crank

FSA 1x Steel Chainring, 36 teeth
Bottom Bracket

BSA, 73mm, threaded
Rear Derailleur

Shimano Cues U6000, GS
Shifters

Shimano SL -MT500-IL / Shimano CUES U6000 10

Components

Brakeset

Shimano MT420, 4 piston
Handlebar

MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB
Saddle

MERIDA COMP SL, 28% recycled material, V-mount
Seatpost

MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M/L: 200mm travel seatpost - XL: 230mm travel seatpost
Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	X				X
Bottom Bracket Drop	35.5mm	35.5mm	35.5mm	35.5mm	35.5mm
Bottom Bracket Height	339mm	339mm	339mm	339mm	339mm
Chainstay Length	449mm	449mm	449mm	449mm	449mm
Front Center	744mm	766mm	788mm	810mm	833mm
Head Tube Angle	66.5°	66.5°	66.5°	66.5°	66.5°
Head Tube Length	100mm	105mm	110mm	115mm	120mm
Rake	55mm	55mm	55mm	56mm	56mm
Reach	431mm	451mm	471mm	491mm	511mm
Seat Tube Angle	79.7°	79.7°	79.6°	79.5°	79.5°
Seat Tube Length	400mm	410mm	425mm	445mm	465mm
Stack	616mm	620mm	624mm	628mm	633mm
Stack Reach Ratio	1.429	1.375	1.325	1.279	1.239
Standover Height	758mm	752mm	746mm	744mm	739mm
Top Tube Length	543mm	564mm	585mm	607mm	628mm
Trail	103mm	103mm	103mm	102mm	102mm
Wheel Kind Front	29	29	29	29	29
Wheel Kind Rear	29	29	29	29	29
Wheelbase	1191mm	1213mm	1235mm	1257mm	1280mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: Where to buy a 2025 Merida eONE-FORTY 475?

The 2025 Merida eONE-FORTY 475 may be purchased directly from Merida.

Q: What size 2025 Merida eONE-FORTY 475 should I get?

The 2025 Merida eONE-FORTY 475 comes in sizes X-Short, Short, Mid, Long, X-Long. After measuring your height, use the size chart below to find the typical Merida eONE-FORTY 475 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
