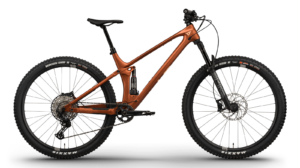

YT Industries Izzo CORE 2 CF 29
YT Industries IZZO 20253299
TrailSize / SM, MD, LG, XL, XXL
Manufacturer WebsiteAt a glance
The 2025 YT Industries Izzo CORE 2 CF 29 is an Trail mountain bike. It is priced at $3,299 USD, comes in a range of sizes, including SM, MD, LG, XL, XXL, has RockShox suspension and a Shimano drivetrain. The bike is part of YT Industries's IZZO range of mountain bikes.Where To Buy
YT Industries
YT Industries Izzo CORE 2 CF 29Reviews
Specifications
Frameset
-
ForkROCKSHOX PIKE SELECT+, 29“, 140mm, RC2, CHARGER 3.1, 15 x 110mm, 44mm Offset
-
ShockROCKSHOX DELUXE SELECT+, 210 x 55mm, R 2-Pos Lever, DebonAir+, 0L1 Spacer
Wheels
-
WheelsCRANKBROTHERS SYNTHESIS XCT 2 ALLOY, Aluminium rims 29”, Front: Inner Width 26.5mm, 110 x 15mm, 6-Bolt, Rear: Inner Width 24.5mm, 148 x 12mm, 6-Bolt, Microspline Freehub
-
TiresMAXXIS MINION DHR II, Front: 29’’ x 2.4 WT I 3C MaxxTerra I EXO I TR, Rear: 29’’ x 2.4 WT I Dual Compound I EXO I TR
Drivetrain
-
CrankSHIMANO SLX FC-M7120, 170mm I 32T, Hollowtech 2
-
Bottom BracketSHIMANO BB-MT800-PA, BB Press Fit 92, 24mm
-
Rear DerailleurSHIMANO SLX RD-M7100, 12-Speed, Shadow+
-
ShiftersSHIMANO XT SL-M8100, 12-Speed, Rapidfire Plus, 2-Way Release
Components
-
BrakesetSHIMANO SLX, Rotor SM-RT66 I 203 mm / 180 mm I 6-Bolt
-
HandlebarYT HANDLEBAR 35, Width 780mm, Rise 20mm, 8° Back Sweep, 6° Upsweep, Black
-
SaddleSDG BEL AIR OVERLAND 3.0, YT Custom, Width 140 mm I Lux-Alloy Rail
-
SeatpostYT POSTMAN V2, Ø 31,6mm I SHIMANO SL-MT500, Adjustable drop 25/10/5mm, 100 mm (S) I 125 mm (M), 150 mm (L), 170 mm (XL), 200mm (XXL)
-
StemRACEFACE AEFFECT R 35, 50mm, +/-0°
-
GripsODI ELITE MOTION V2.1, Lock-On
-
HeadsetACROS AZX, 579 Block Lock (S-M), 579 (L-XXL) I 2 Spacer 5 mm
Geometry
| Frame Size | SM | MD | LG | XL | XXL |
| Bottom Bracket Drop | 35mm | 35mm | 35mm | 35mm | 35mm |
| Bottom Bracket Height | 339mm | 339mm | 339mm | 339mm | 339mm |
| Chainstay Length | 432mm | 432mm | 432mm | 437mm | 437mm |
| Front Center | 728mm | 753mm | 779mm | 805mm | 830mm |
| Head Tube Angle | 66° | 66° | 66° | 66° | 66° |
| Head Tube Length | 95mm | 105mm | 115mm | 130mm | 140mm |
| Rake | 42mm | 42mm | 42mm | 41mm | 41mm |
| Reach | 429mm | 450mm | 472mm | 492mm | 513mm |
| Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Seat Tube Length | 400mm | 425mm | 450mm | 475mm | 500mm |
| Stack | 603mm | 612mm | 621mm | 635mm | 644mm |
| Stack Reach Ratio | 1.406 | 1.36 | 1.316 | 1.291 | 1.255 |
| Standover Height | 734mm | 727mm | 721mm | 716mm | 734mm |
| Top Tube Length | 566mm | 591mm | 616mm | 641mm | 666mm |
| Trail | 121mm | 121mm | 121mm | 122mm | 122mm |
| Wheel Kind Front | 29 | 29 | 29 | 29 | 29 |
| Wheel Kind Rear | 29 | 29 | 29 | 29 | 29 |
| Wheelbase | 1158mm | 1183mm | 1209mm | 1240mm | 1265mm |
FAQ
Q: How much is a 2025 YT Industries Izzo CORE 2 CF 29?
A 2025 YT Industries Izzo CORE 2 CF 29 is typically priced around $3,299 USD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.
Q: Where to buy a 2025 YT Industries Izzo CORE 2 CF 29?
The 2025 YT Industries Izzo CORE 2 CF 29 may be purchased directly from YT Industries.
Q: What size 2025 YT Industries Izzo CORE 2 CF 29 should I get?
The 2025 YT Industries Izzo CORE 2 CF 29 comes in sizes SM, MD, LG, XL, XXL. After measuring your height, use the size chart below to find the typical YT Industries Izzo CORE 2 CF 29 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.
| Rider Height (cm) | Rider Height (in) | Frame Size |
|---|---|---|
| 148cm - 158cm | 4'10" - 5'2" | XS |
| 158cm - 168cm | 5'2" - 5'6" | S |
| 168cm - 178cm | 5'6" - 5' 10" | M |
| 178cm - 185cm | 5'10" - 6'1" | L |
| 185cm - 193cm | 6'1" - 6'4" | XL |
| 193cm - 198cm | 6'4" - 6'6" | XXL |
