Name: 2025 Superior eXP 6.3
Brand: Superior

E-Mountain Trail

Compare

Size / SM, MD, LG, XL

Manufacturer Website

At a glance

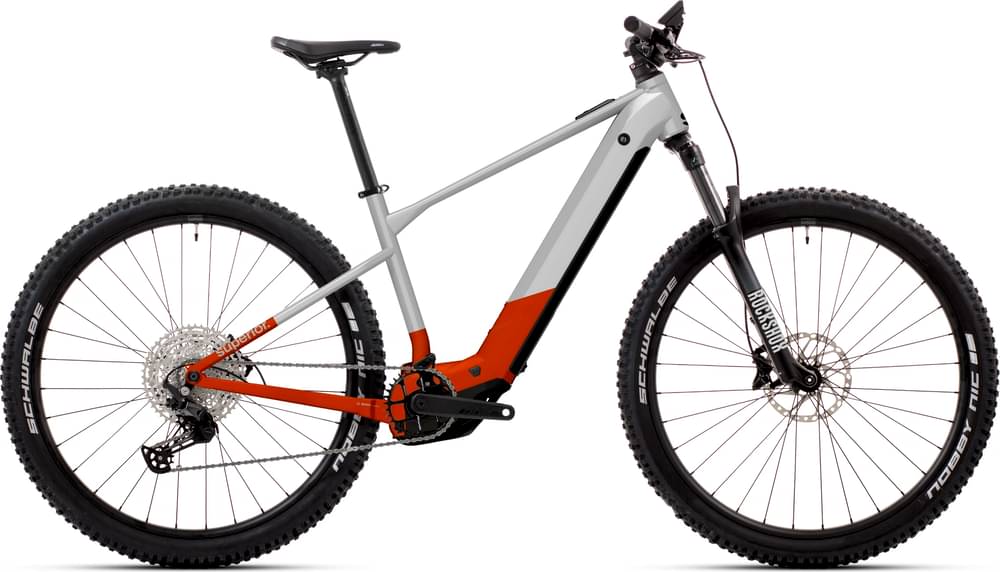

The 2025 Superior eXP 6.3 is a E-Mountain and Trail mountain bike. It comes in a range of sizes, including SM, MD, LG, XL, has SR Suntour suspension and a Shimano drivetrain. The bike is part of Superior's eXP range of mountain bikes. As a pedal-assisted e-mountain bike, the Superior eXP 6.3 is powered by a BOSCH Performance PX, 85Nm motor and a BOSCH PowerTube, 600Wh battery.

Where To Buy

Superior

Superior eXP 6.3

Loading more...

Reviews

Specifications

Frameset

Frame

SU-E40-01, Alu X6 Ultralite, Advanced eMTB Geometry, Integrated battery, SR dropout, Boost 12x148 mm, Inner cable routing, Dropper seat post ready
Fork

SR Suntour XCR32, Tapered, 15x110mm axle, 120mm travel
Motor

BOSCH Performance PX, 85Nm
Battery

BOSCH PowerTube, 600Wh

Wheels

Hubs

SHIMANO FH-TC500-HM-B, 32H, CL, 12X148mm, THRU Type AXLE
Wheels

STARS J30D, Disc, 32H
Spokes

SAPIM Galvanized Black
Tires

Schwalbe Hurricane Performance, 29x2.25, ADDIX

Drivetrain

Chain

SHIMANO CN-LG500
Crank

ONE Race, Alloy
Rear Derailleur

SHIMANO CUES RD-U4000, Shadow Design
Shifters

SHIMANO CUES SL-U4000-9R, RAPIDFIRE Plus, 9-speed

Components

Brakeset

SHIMANO MT200, hydraulic disc brake
Handlebar

ONE Alloy, 20mm rise, 35mm
Saddle

Selle Royal Vivo
Seatpost

ONE Race, Alloy, 30.9mm
Stem

ONE ICR, Alloy, 35mm, 0°
Headset

ACROS AZX-596R1, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	SM	MD	LG	XL
Bottom Bracket Drop	56mm	56mm	56mm	56mm
Bottom Bracket Height	318mm	318mm	318mm	318mm
Chainstay Length	442mm	442mm	442mm	442mm
Crank Length	165mm	165mm	165mm	170mm
Front Center	779mm	779mm	799mm	827mm
Handlebar Width	760mm	760mm	760mm	760mm
Head Tube Angle	66°	66°	66°	66°
Head Tube Length	120mm	120mm	120mm	140mm
Rake	52mm	53mm	53mm	53mm
Reach	460mm	459mm	479mm	500mm
Seat Tube Angle	78°	77°	77°	77°
Seat Tube Length	393mm	431mm	482mm	533mm
Stack	638mm	638mm	638mm	656mm
Stack Reach Ratio	1.387	1.39	1.332	1.312
Stem Length	35mm	50mm	50mm	50mm
Top Tube Length	592mm	612mm	632mm	642mm
Trail	110mm	109mm	109mm	109mm
Wheel Kind Front	29	29	29	29
Wheel Kind Rear	29	29	29	29
Wheelbase	1215mm	1215mm	1235mm	1264mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: Where to buy a 2025 Superior eXP 6.3?

The 2025 Superior eXP 6.3 may be purchased directly from Superior.

Q: What size 2025 Superior eXP 6.3 should I get?

The 2025 Superior eXP 6.3 comes in sizes SM, MD, LG, XL. After measuring your height, use the size chart below to find the typical Superior eXP 6.3 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
