2025

Pivot Trailcat LT Pro X0 Eagle Transmission Neo

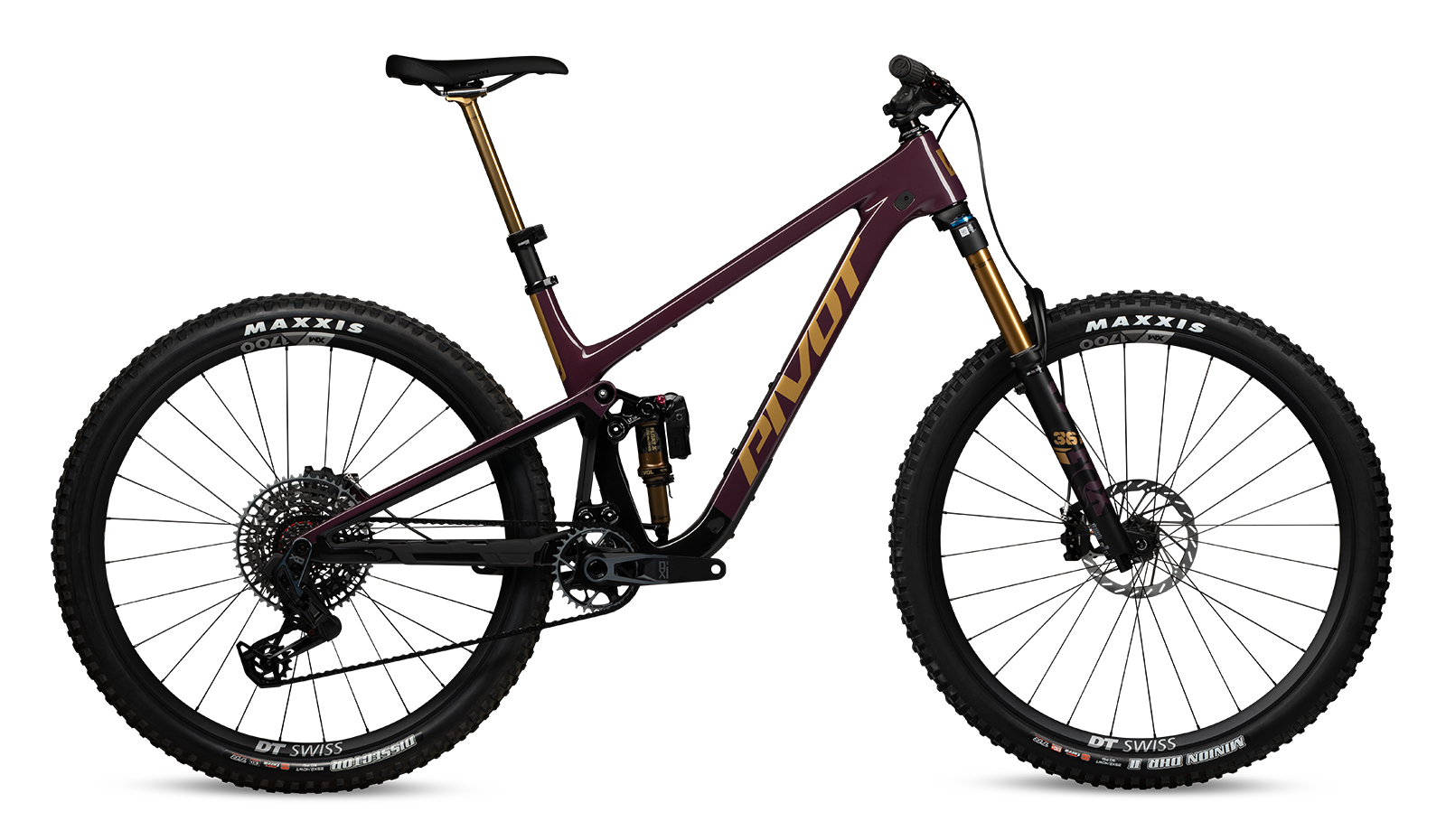

Name: 2025 Pivot Trailcat LT Pro X0 Eagle Transmission Neo
Brand: Pivot

Enduro

Compare

Colour / Green Meadow Mist, Doctor Purple

Size / XS (Low, High), SM (Low, High), MD (Low, High), LG (Low, High), XL (Low, High)

At a glance

The 2025 Pivot Trailcat LT Pro X0 Eagle Transmission Neo is an Enduro Carbon mountain bike. It sports 29" wheels, is priced at $170,035,010,699 USD, comes in a range of sizes, including XS (Low, High), SM (Low, High), MD (Low, High), LG (Low, High), XL (Low, High), has Fox suspension and a SRAM drivetrain. The bike is part of Pivot's Trailcat range of mountain bikes.

- dw-link rear suspension design

- Geometry adjustable via two-position flip chip in upper linkage

- Compatible with 27.5+ wheels or mixed (“”Mullet”) setups (29″ front, 27.5″ rear)

- Toolshed in-frame downtube storage system; includes two custom storage bags

- Internal cable routing with Dual Cable Port design

- SRAM UDH (Universal Derailleur Hanger)

- Frame weights start at 5.3 lbs (2.43 kg) without shock

- Follow easy setup guides, monitor battery levels, download and engage Live Valve Neo tunes, and track suspension service intervals via the FOX Bike App

Where To Buy

Pivot

Pivot Trailcat LT Pro X0 Eagle Transmission Neo

Loading more...

Reviews

Specifications

Frameset

Frame

Hollow Core carbon fiber front and rear triangles; molded seatstay, chainstay, and lower down tube protection
Fork

FOX FLOAT 36 Factory, GRIP X2 damper, Kashima coating, 44mm offset
Shock

FOX FLOAT X Live Valve Neo Factory, 2-position (Open/Firm) automatic electronic compression damping adjustment, Firm Mode adjust, low-speed compression adjust, low-speed rebound adjust, Kashima coating, trunnion mount, 185mm length x 55mm stroke

Wheels

Hubs

DT Swiss 350, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) rear with 36-tooth Star Ratchet freehub and XD driver, Option (with Reynolds Blacklabel Carbon rims): Industry Nine Hydra
Wheels

DT Swiss XM 1700 Alloy, 30mm width, Option: Reynolds Blacklabel 329 Trail Pro Carbon, 30mm-width front, 28mm-width rear
Wheel Size

29"
Tires

Front: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 29"" x 2.4" WT
Rear: Maxxis Dissector, 3C MaxxTerra compound, EXO casing, TR, 29" x 2.4" WT

Drivetrain

Chain

SRAM X0 Eagle Transmission Flattop, 12-speed
Crank

SRAM X0 Eagle Transmission Alloy DUB
Bottom Bracket

SRAM DUB, 92mm PressFit
Rear Derailleur

SRAM X0 Eagle Transmission, 12-speed, AXS electronic wireless
Shifters

SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless

Components

Brakeset

SRAM Maven Silver, 4-piston, SRAM HS2 180mm CENTER LOCK rotors, SRAM Maven Silver Stealth, tool-free reach adjust and contact point adjust
Handlebar

Phoenix Team Low Rise Carbon, Width: 780mm (XS-LG), 800mm (XL)
Saddle

WTB Volt Pro Phoenix, medium width
Seatpost

FOX Transfer Neo Factory dropper, electronic wireless, Kashima coating, 31.6mm, Single bolt, 36.4mm
Drop:
125mm (XS)
150mm (SM)
175mm (MD)
200mm (LG/XL)
Stem

Phoenix Team Enduro/Trail, Length: 35mm (XS), 45mm (SM), 55mm (MD-XL)
Grips

Phoenix Factory, lock-on
Headset

Pivot Precision, sealed cartridge bearings

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2025 Pivot Trailcat LT Pro X0 Eagle Transmission Neo?

A 2025 Pivot Trailcat LT Pro X0 Eagle Transmission Neo is typically priced around $170,035,010,699 USD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: What size wheels does the 2025 Pivot Trailcat LT Pro X0 Eagle Transmission Neo have?

The 2025 Pivot Trailcat LT Pro X0 Eagle Transmission Neo has 29" wheels.

Q: What size 2025 Pivot Trailcat LT Pro X0 Eagle Transmission Neo should I get?

The 2025 Pivot Trailcat LT Pro X0 Eagle Transmission Neo comes in sizes XS (Low, High), SM (Low, High), MD (Low, High), LG (Low, High), XL (Low, High). After measuring your height, use the size chart below to find the typical Pivot Trailcat LT Pro X0 Eagle Transmission Neo size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
