2025

BiXS Access-E20 Gor

Name: 2025 BiXS Access-E20 Gor
Brand: BiXS

E-Mountain Cross Country

Compare

Size / SM, MD, LG

Manufacturer Website

At a glance

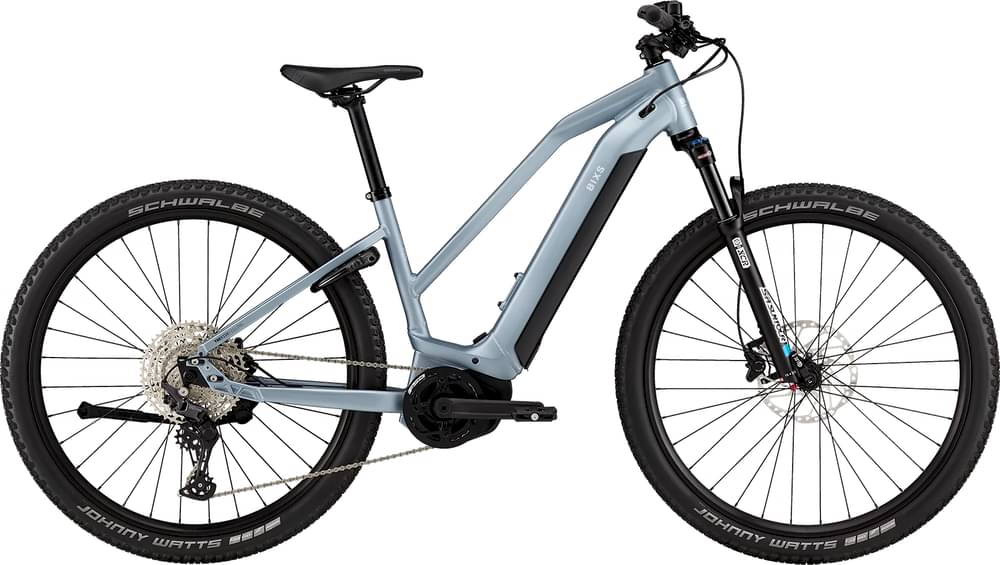

The 2025 BiXS Access-E20 Gor is a E-Mountain and Cross Country Aluminium / Alloy mountain bike. It comes in a range of sizes, including SM, MD, LG, has SR Suntour suspension and a Shimano drivetrain. The bike is part of BiXS's ACCESS-E20 range of mountain bikes. As a pedal-assisted e-mountain bike, the BiXS Access-E20 Gor is powered by a YAMAHA PW-X 2 SERIES, 250 WATT motor and a SIMPLO, 36V, 630Wh battery.

Where To Buy

BiXS

BiXS Access-E20 Gor

Loading more...

Reviews

Specifications

Frameset

Frame

E-ACTIVE GEOMETRY SUV, ALLOY 6061 HYDROFORMED D.B. TUBES, Hardtail, DROPOUT 148x12mm BOOST, 29""
Fork

SUNTOUR XCR34 AIR 29"", LOR, 15x110mm AXLE, TAPERED, 100mm TRAVEL, REBOUND LOCKOUT
Motor

YAMAHA PW-X 2 SERIES, 250 WATT
Battery

SIMPLO, 36V, 630Wh

Wheels

Hubs

SHIMANO FH-TC500-HM-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Wheels

ALEXRIMS EM-30, 32 HOLES, INNER WIDTH 30mm, 29""
Tires

SCHWALBE JONNY WATTS PERFORMANCE RACE GUARD, 29x2.35""

Drivetrain

Chain

SHIMANO CN-E8000 FOR E-Bike 11-SPEED
Crank

FSA CK-320/ISIS, 34 TEETH
Rear Derailleur

SHIMANO DEORE RD-M5100 SGS SHADOW PLUS DESIGN, 11-SPEED
Shifters

SHIMANO DEORE SL-M5100

Components

Brakeset

SHIMANO BR-MT410, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:200mm, R:180mm ROTORS
Handlebar

BIXS HB-RB12L RIZER BAR, 700mm, 9°ANGLE, 15mm RISE, 31.8mm
Saddle

ERGON SFC30
Seatpost

BIXS SP-719, S & M: 350mm, OTHERS: 400mm, 31.6mm
Stem

BIXS AS-M03, 0°ANGLE, 31.8mm CLAMP
Headset

FSA NO.55R 1.5"" / 558

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	SM	MD	LG
Bottom Bracket Drop	64mm	64mm	64mm
Bottom Bracket Height	310mm	310mm	310mm
Chainstay Length	480mm	480mm	480mm
Crank Length	170mm	170mm	170mm
Front Center	695mm	708mm	719mm
Head Tube Angle	68°	68°	68°
Head Tube Length	130mm	135mm	140mm
Rake	52mm	52mm	53mm
Reach	399mm	410mm	419mm
Seat Tube Angle	73°	73°	73°
Seat Tube Length	380mm	430mm	480mm
Stack	650mm	655mm	659mm
Stack Reach Ratio	1.629	1.598	1.573
Stem Length	45mm	45mm	45mm
Top Tube Length	598mm	610mm	621mm
Trail	95mm	95mm	94mm
Wheel Kind Front	29	29	29
Wheel Kind Rear	29	29	29
Wheelbase	1168mm	1181mm	1192mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: Where to buy a 2025 BiXS Access-E20 Gor?

The 2025 BiXS Access-E20 Gor may be purchased directly from BiXS.

Q: What size 2025 BiXS Access-E20 Gor should I get?

The 2025 BiXS Access-E20 Gor comes in sizes SM, MD, LG. After measuring your height, use the size chart below to find the typical BiXS Access-E20 Gor size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
