2024

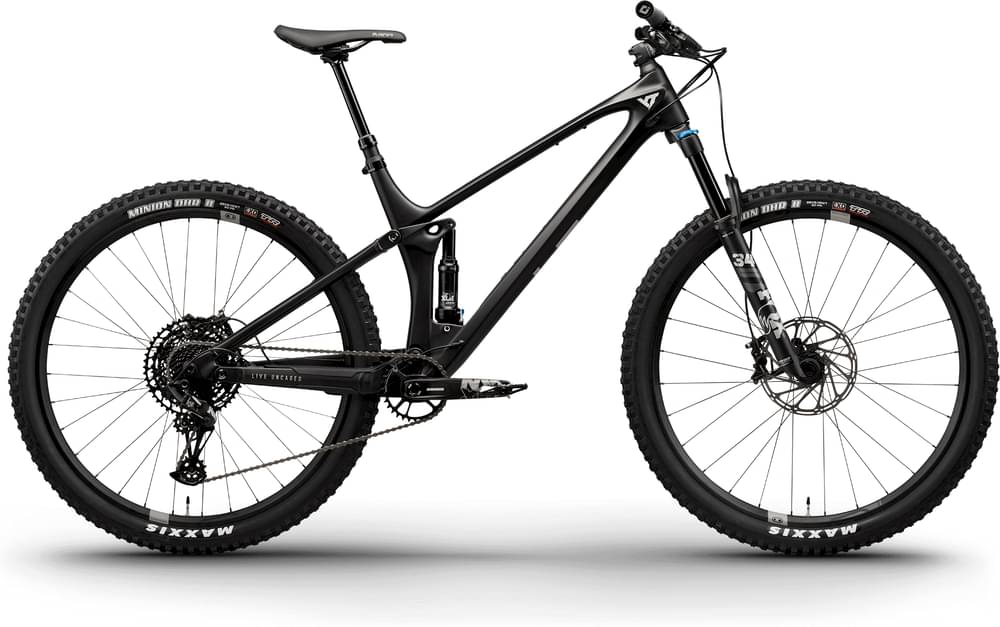

YT Industries Izzo CORE 2 29

Name: 2024 YT Industries Izzo CORE 2 29
Brand: YT Industries

Trail

Compare

Size / SM, MD, LG, XL, XXL

Manufacturer Website

At a glance

The 2024 YT Industries Izzo CORE 2 29 is an Trail mountain bike. It is priced at $3,299 USD, comes in a range of sizes, including SM, MD, LG, XL, XXL, has Fox suspension and a SRAM drivetrain. The bike is part of YT Industries's IZZO range of mountain bikes.

Where To Buy

YT Industries

YT Industries Izzo CORE 2 29

Loading more...

Reviews

Specifications

Frameset

Fork

FOX 34 FLOAT PERFORMANCE, 29“, 130 mm Travel, 110 x 15 mm QR Axle, 44 mm Offset, Grip Damper, Adjustable Low-Speed Compression and Rebound, Air Pressure
Shock

FOX FLOAT PERFORMANCE, Shock Length: 210 mm, Shock Stroke: 55 mm ≙ 130 mm Travel, 2-pos lever, 0.2 Spacer, custom tune

Wheels

Wheels

CRANKBROTHERS SYNTHESIS XCT ALLOY, Aluminium rims 29”, Front: Inner Width 26.5mm, 110 x 15mm, 6-Bolt
Rear: Inner Width 24.5mm, 148 x 12mm, 6-Bolt, Freehub HG
Tires

MAXXIS MINION DHR II, Front: 29’’ x 2.4 WT I 3C MaxxTerra I EXO I TR
Rear: 29’’ x 2.4 WT I Dual Compound I EXO I TR

Drivetrain

Crank

SRAM NX EAGLE, Crank Arm Length 170 mm (S), 175 mm (M-XXL), 32T, DUB
Bottom Bracket

SRAM DUB Pressfit, BB DUB PF 92 MTB
Rear Derailleur

SRAM NX EAGLE, 12-speed
Shifters

SRAM NX EAGLE, 12-speed I MMX

Components

Brakeset

SRAM G2 R, Rotor CENTERLINE Ø front 200 mm / rear 180 mm, Adjustable Reach
Handlebar

RACE FACE AEFFECT R 35, Width 780 mm, Rise 20 mm, 9° Back Sweep, 5° Up Sweep, 7075 AL
Saddle

SDG BEL AIR Overland 3.0, YT Custom, Width 140 mm I Lux-Alloy Rail
Seatpost

YT POSTMAN V2, Ø 31,6mm I MMX-Remote, Adjustable drop 25/10/5mm, 100 mm (S) I 125 mm (M), 150 mm (L), 170 mm (XL), 200mm (XXL)
Stem

RACE FACE AEFFECT R 35, Length 50 mm (S-M), 60 mm (L-XXL), 35 mm Clamp, Rise +/-6°
Grips

ODI ELITE MOTION V2.1, Lock On
Headset

ACROS AZX, 586 Block Lock (S-M), 576 (L-XXL) I 2 Spacer 5 mm

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	SM	MD	LG	XL	XXL
Bottom Bracket Drop	35mm	35mm	35mm	35mm	35mm
Bottom Bracket Height	339mm	339mm	339mm	339mm	339mm
Chainstay Length	432mm	432mm	432mm	437mm	437mm
Front Center	728mm	753mm	779mm	805mm	830mm
Head Tube Angle	66°	66°	66°	66°	66°
Head Tube Length	95mm	105mm	115mm	130mm	140mm
Rake	42mm	42mm	42mm	41mm	41mm
Reach	429mm	450mm	472mm	492mm	513mm
Seat Tube Angle	77°	77°	77°	77°	77°
Seat Tube Length	400mm	425mm	450mm	475mm	500mm
Stack	603mm	612mm	621mm	635mm	644mm
Stack Reach Ratio	1.406	1.36	1.316	1.291	1.255
Standover Height	734mm	727mm	721mm	716mm	734mm
Top Tube Length	566mm	591mm	616mm	641mm	666mm
Trail	121mm	121mm	121mm	122mm	122mm
Wheel Kind Front	29	29	29	29	29
Wheel Kind Rear	29	29	29	29	29
Wheelbase	1158mm	1183mm	1209mm	1240mm	1265mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2024 YT Industries Izzo CORE 2 29?

A 2024 YT Industries Izzo CORE 2 29 is typically priced around $3,299 USD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2024 YT Industries Izzo CORE 2 29?

The 2024 YT Industries Izzo CORE 2 29 may be purchased directly from YT Industries.

Q: What size 2024 YT Industries Izzo CORE 2 29 should I get?

The 2024 YT Industries Izzo CORE 2 29 comes in sizes SM, MD, LG, XL, XXL. After measuring your height, use the size chart below to find the typical YT Industries Izzo CORE 2 29 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
