2024

Whyte ELyte 150 Works

Name: 2024 Whyte ELyte 150 Works
Brand: Whyte

E-Mountain Enduro

Compare

Size / SM, MD, LG, XL

Manufacturer Website

At a glance

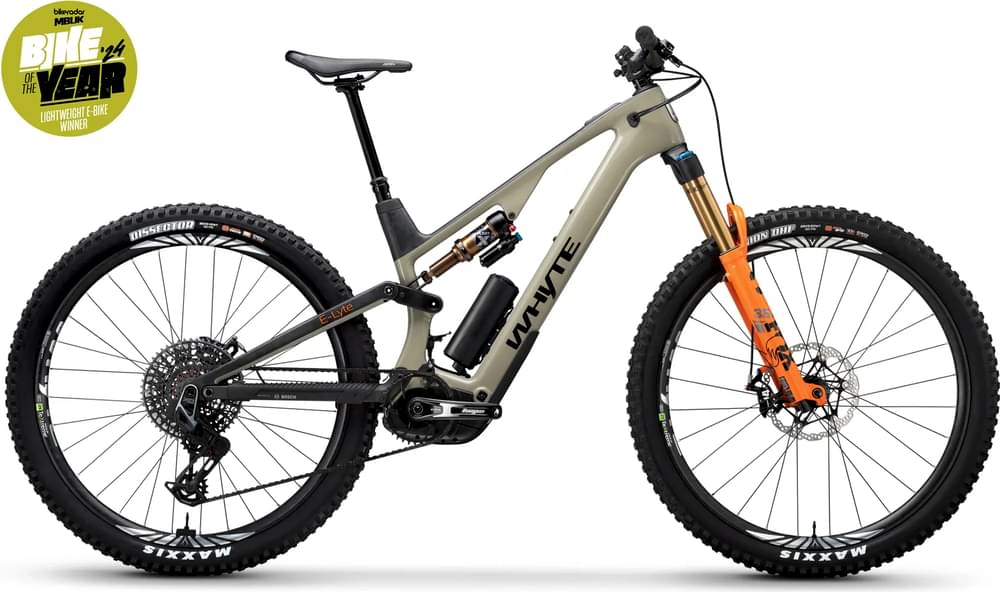

The 2024 Whyte ELyte 150 Works is a E-Mountain and Enduro Carbon mountain bike. It is priced at £9,999 GBP, comes in a range of sizes, including SM, MD, LG, XL, has Fox suspension and a SRAM drivetrain. The bike is part of Whyte's ELyte range of mountain bikes.

Where To Buy

Whyte

Whyte ELyte 150 Works

Loading more...

Reviews

Specifications

Frameset

Frame

Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Fork

Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip2 damper, tapered steerer, 110m x 15mm Kabolt axle
Shock

Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm

Wheels

Hubs

Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
Wheels

Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear (CushCore Trail rim protection fitted to rear wheel)
Spokes

DT Swiss New Champion 2.0mm, black stainless, brass nipples
Tires

Maxxis Minion DHF, EXO TR MaxxGripp 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear

Drivetrain

Chain

SRAM XO T-Type, 12 speed
Crank

Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type
Rear Derailleur

SRAM XO T-Type AXS, 12 speed
Shifters

SRAM AXS Pod, right, MMX, 12 speed

Components

Brakeset

Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor
Handlebar

Race Face Next R Carbon, 20mm rise, 35mm bar bore, 800mm width
Saddle

Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Seatpost

Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
Stem

Whyte Trail full CNC, 32mm extension, 35mm bar bore
Grips

Whyte Enduro lock-on
Headset

FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	SM	MD	LG	XL
Bottom Bracket Drop	33mm	33mm	33mm	33mm
Bottom Bracket Height	341.9mm	341.9mm	341.9mm	341.9mm
Chainstay Length	450.4mm	450.4mm	450.4mm	450.4mm
Front Center	763mm	794mm	824mm	854mm
Head Tube Angle	64.6°	64.6°	64.6°	64.6°
Head Tube Length	114mm	127mm	140mm	152mm
Rake	44mm	44mm	44mm	44mm
Reach	431mm	456mm	481mm	506mm
Seat Tube Angle	77.5°	77.3°	77.1°	76.9°
Seat Tube Length	395mm	420mm	445mm	470mm
Stack	628.7mm	640.5mm	652.3mm	663.2mm
Stack Reach Ratio	1.459	1.405	1.356	1.311
Standover Height	741mm	741mm	741mm	741mm
Trail	129mm	129mm	129mm	129mm
Wheel Kind Front	29	29	29	29
Wheel Kind Rear	29	29	29	29
Wheelbase	1211.6mm	1242.1mm	1272.6mm	1302.7mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2024 Whyte ELyte 150 Works?

A 2024 Whyte ELyte 150 Works is typically priced around £9,999 GBP when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2024 Whyte ELyte 150 Works?

The 2024 Whyte ELyte 150 Works may be purchased directly from Whyte.

Q: What size 2024 Whyte ELyte 150 Works should I get?

The 2024 Whyte ELyte 150 Works comes in sizes SM, MD, LG, XL. After measuring your height, use the size chart below to find the typical Whyte ELyte 150 Works size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
