Whyte ELyte 150 RSX
Whyte ELyte 20247999
E-Mountain EnduroSize / SM, MD, LG, XL
Manufacturer WebsiteAt a glance

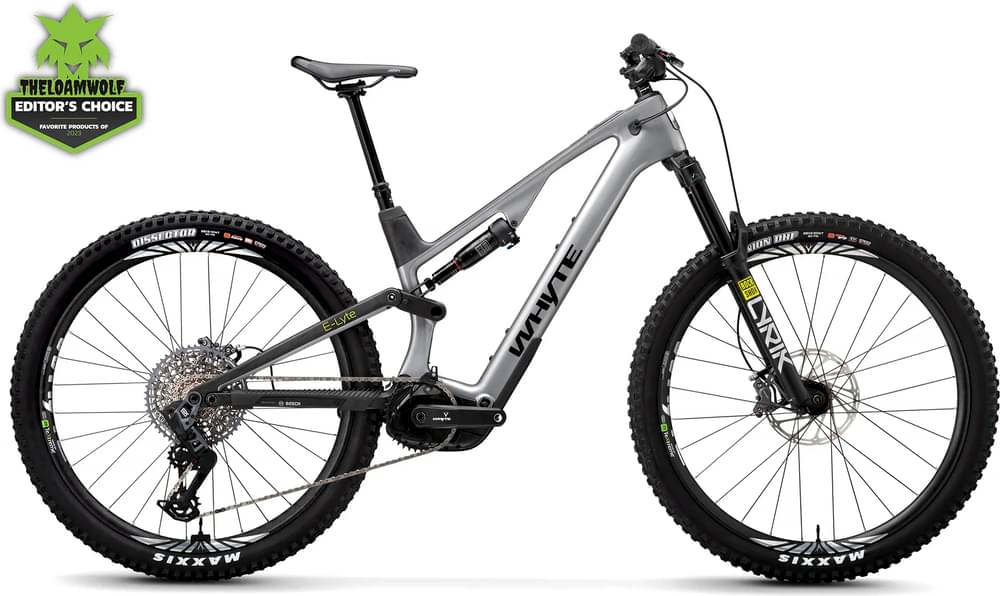

The 2024 Whyte ELyte 150 RSX is a E-Mountain and Enduro Carbon mountain bike. It is priced at £7,999 GBP, comes in a range of sizes, including SM, MD, LG, XL, has RockShox suspension and a SRAM drivetrain. The bike is part of Whyte's ELyte range of mountain bikes. As a pedal-assisted e-mountain bike, the Whyte ELyte 150 RSX is powered by a Alloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost tspacing, 32 hole motor and a battery.Where To Buy
Whyte
Whyte ELyte 150 RSXReviews
Specifications
Frameset
-
FrameUni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
-
ForkRockShox Lyrik Select+ 29in, 150mm travel, 44mm offset, DebonAir+, Charger 3 RC2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost
-
ShockRockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment
-
MotorAlloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost tspacing, 32 hole
Wheels
-
HubsAlloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost tspacing, 32 hole
-
WheelsWhyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear (CushCore Trail rim protection fitted to rear wheel)
-
SpokesDT Swiss New Champion 2.0mm, black stainless, brass nipples
-
TiresMaxxis Minion DHF, EXO TR MaxxGripp 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear
Drivetrain
-
ChainSRAM GX T-Type, 12 speed
-
CrankWhyte 155mm ISIS arms, GX Gen4 direct mount 36T chainring, T-Type
-
Rear DerailleurSRAM GX T-Type AXS, 12 speed
-
ShiftersSRAM AXS Pod, right, MMX, 12 speed
Components
-
BrakesetSRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor
-
HandlebarWhyte Custom 6061 alloy, 20mm rise, 35mm bar bore, 800mm wide
-
SaddleFizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
-
SeatpostWhyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
-
StemWhyte Trail full CNC, 32mm extension, 35mm bar bore
-
GripsWhyte Enduro lock-on
-
HeadsetFSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing
Geometry
| Frame Size | SM | MD | LG | XL |
| Bottom Bracket Drop | 33mm | 33mm | 33mm | 33mm |
| Bottom Bracket Height | 341.9mm | 341.9mm | 341.9mm | 341.9mm |
| Chainstay Length | 450.4mm | 450.4mm | 450.4mm | 450.4mm |
| Front Center | 763mm | 794mm | 824mm | 854mm |
| Head Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° |
| Head Tube Length | 114mm | 127mm | 140mm | 152mm |
| Rake | 44mm | 44mm | 44mm | 44mm |
| Reach | 431mm | 456mm | 481mm | 506mm |
| Seat Tube Angle | 77.5° | 77.3° | 77.1° | 76.9° |
| Seat Tube Length | 395mm | 420mm | 445mm | 470mm |
| Stack | 628.7mm | 640.5mm | 652.3mm | 663.2mm |
| Stack Reach Ratio | 1.459 | 1.405 | 1.356 | 1.311 |
| Standover Height | 741mm | 741mm | 741mm | 741mm |
| Trail | 129mm | 129mm | 129mm | 129mm |
| Wheel Kind Front | 29 | 29 | 29 | 29 |
| Wheel Kind Rear | 29 | 29 | 29 | 29 |
| Wheelbase | 1211.6mm | 1242.1mm | 1272.6mm | 1302.7mm |
FAQ
Q: How much is a 2024 Whyte ELyte 150 RSX?
A 2024 Whyte ELyte 150 RSX is typically priced around £7,999 GBP when new. Be sure to shop around for the best price, and also look to the used market for a great deal.
Q: Where to buy a 2024 Whyte ELyte 150 RSX?
The 2024 Whyte ELyte 150 RSX may be purchased directly from Whyte.
Q: What size 2024 Whyte ELyte 150 RSX should I get?
The 2024 Whyte ELyte 150 RSX comes in sizes SM, MD, LG, XL. After measuring your height, use the size chart below to find the typical Whyte ELyte 150 RSX size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.
| Rider Height (cm) | Rider Height (in) | Frame Size |
|---|---|---|
| 148cm - 158cm | 4'10" - 5'2" | XS |
| 158cm - 168cm | 5'2" - 5'6" | S |
| 168cm - 178cm | 5'6" - 5' 10" | M |
| 178cm - 185cm | 5'10" - 6'1" | L |
| 185cm - 193cm | 6'1" - 6'4" | XL |
| 193cm - 198cm | 6'4" - 6'6" | XXL |
