2024

Whyte ELyte 140 Works XC

Name: 2024 Whyte ELyte 140 Works XC
Brand: Whyte

E-Mountain Trail

Compare

Size / SM, MD, LG, XL

Manufacturer Website

At a glance

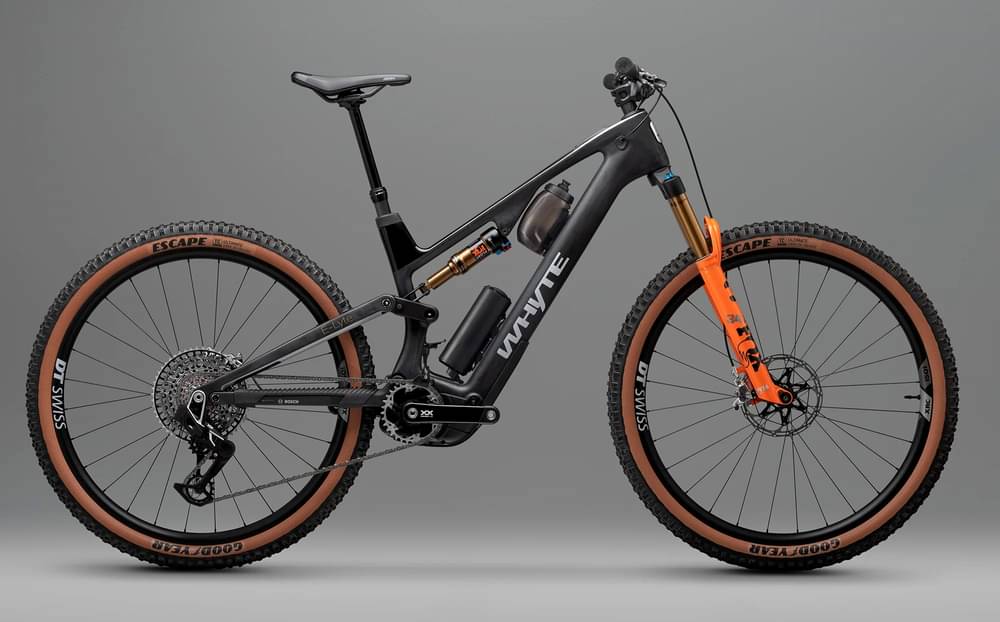

The 2024 Whyte ELyte 140 Works XC is a E-Mountain and Trail Carbon mountain bike. It is priced at £10,999 GBP, comes in a range of sizes, including SM, MD, LG, XL, has Fox suspension and a SRAM drivetrain. The bike is part of Whyte's ELyte range of mountain bikes. As a pedal-assisted e-mountain bike, the Whyte ELyte 140 Works XC is powered by a DT Swiss 240, e-bike specific, double sealed cartridge bearings, straight pull, 12mm x 148mm Boost spacing, six bolt, XD driver motor and a battery.

Where To Buy

Whyte

Whyte ELyte 140 Works XC

Loading more...

Reviews

Specifications

Frameset

Frame

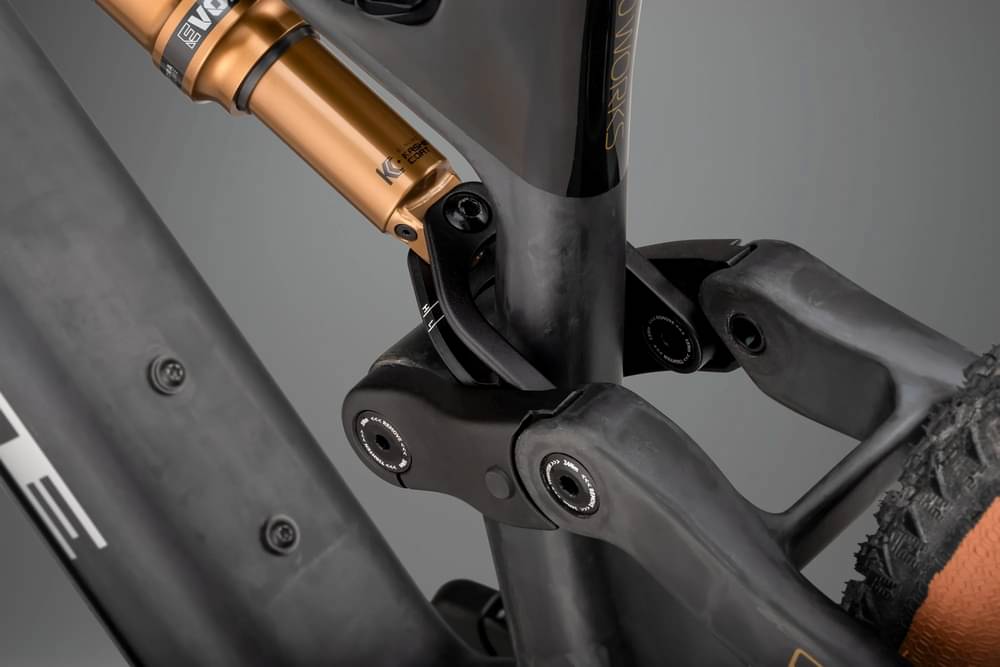

Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Fork

Fox Float 34 Factory 29in, 140mm travel, 44mm offset, FIT4 damper, tapered steerer, 110mm x 15mm Boost Kabolt axle
Shock

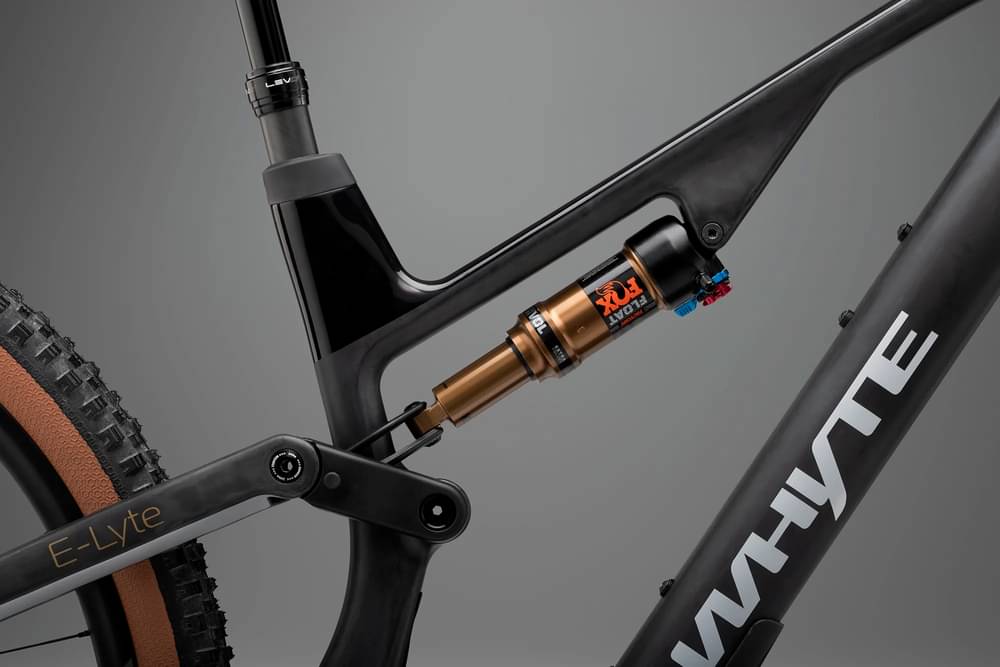

Fox Float Factory, Evol LV, adjustable rebound and two position compression adjustment
Motor

DT Swiss 240, e-bike specific, double sealed cartridge bearings, straight pull, 12mm x 148mm Boost spacing, six bolt, XD driver

Wheels

Hubs

DT Swiss 240, e-bike specific, double sealed cartridge bearings, straight pull, 12mm x 148mm Boost spacing, six bolt, XD driver
Wheels

DT Swiss XRC 1501 Spline
Spokes

DT Swiss Competition spokes straight pull (SP)
Tires

Good Year Escape tubeless ready tan wall 29in x 2.4in, 800g front and rear

Drivetrain

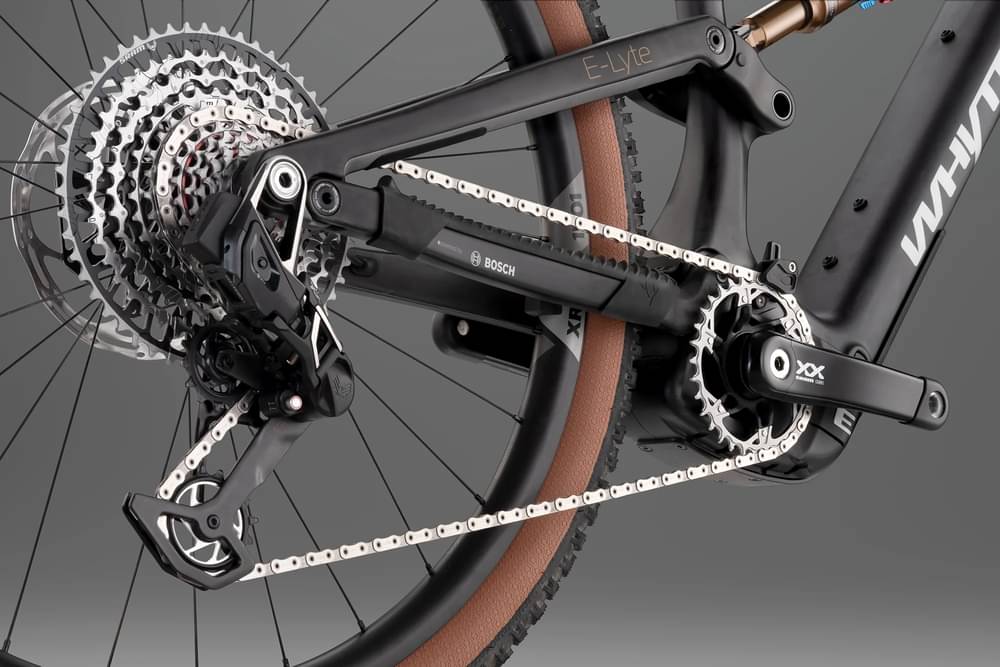

Chain

SRAM XX T-Type, 12 speed
Crank

SRAM XX Isis Carbon, 165mm arms, XX Gen4 Direct Mount 32T chainring, T-Type Light eMTB
Rear Derailleur

SRAM XX SL T-Type AXS, 12 speed
Shifters

SRAM AXS Pod, right, MMX, 12 speed

Components

Brakeset

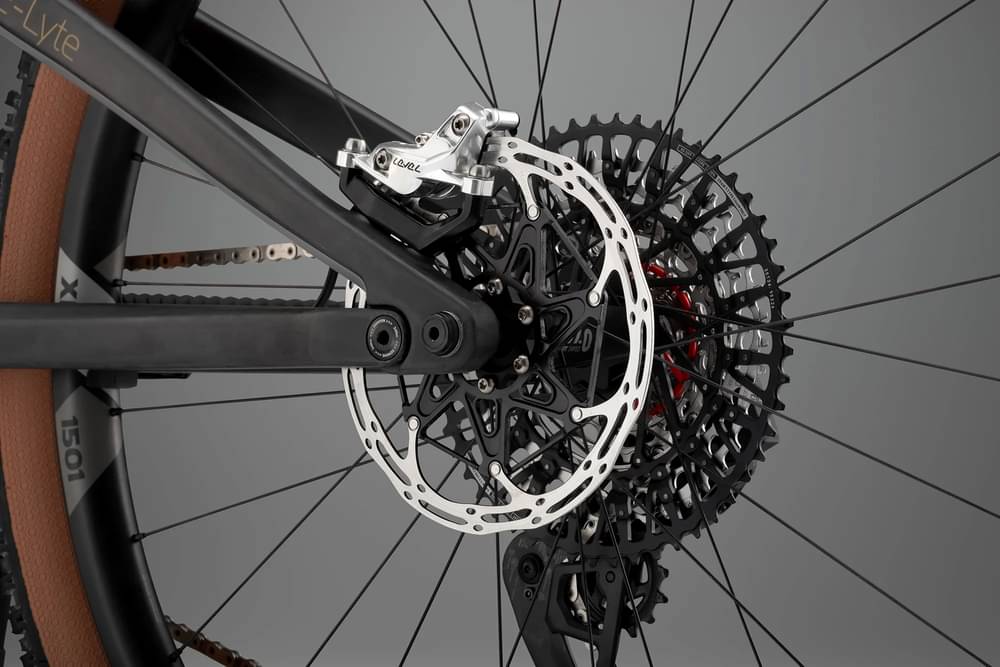

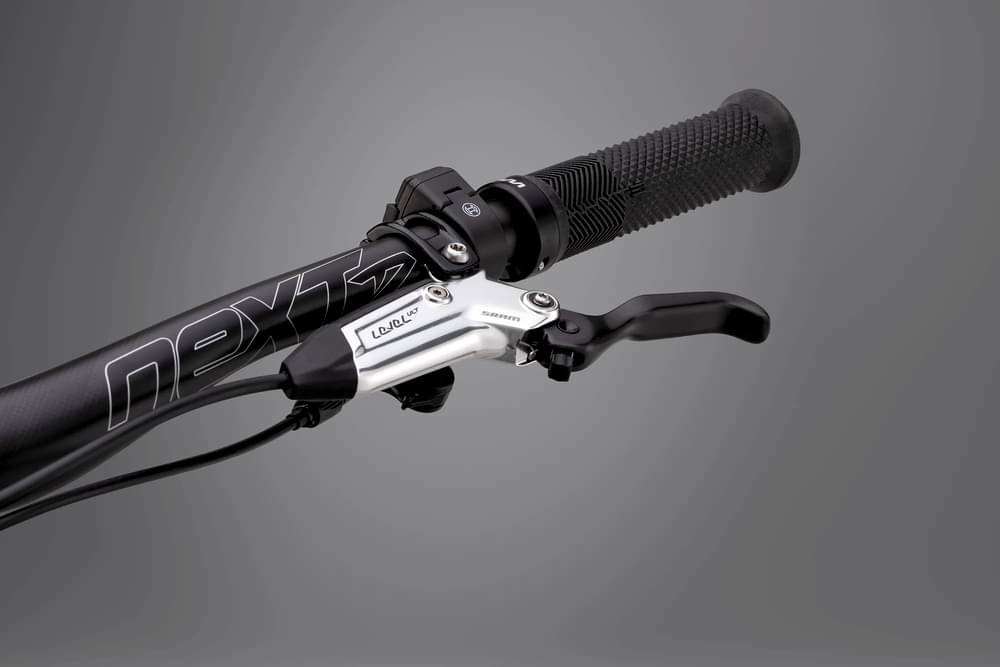

SRAM Level Ultimate Stealth, four piston hydraulic, 180mm diameter disc rotor
Handlebar

Race Face NEXT R Carbon, 20mm rise, 35mm bar bore, 800mm wide
Saddle

Terra Aidon X1, 145mm, fibre reinforced nylon with Wingflex, Carbon 7x7mm rail
Seatpost

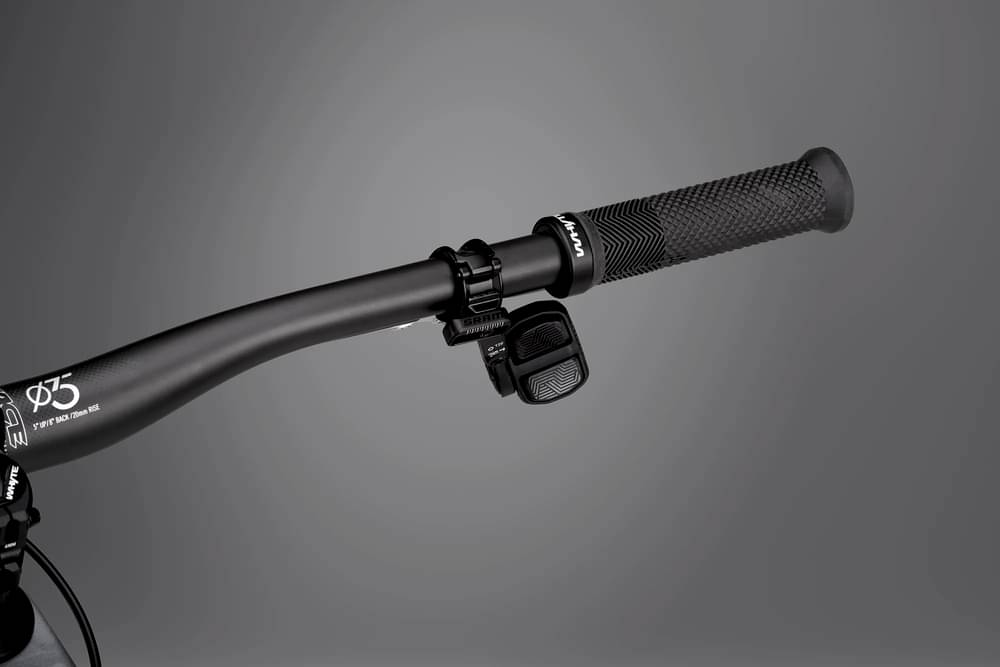

KS Lev Ci, 30.9mm, 175mm drop, with Southpaw remote lever
Stem

Whyte Trail full CNC, 40mm extension, 35mm bar bore
Grips

Whyte Enduro lock-on
Headset

FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	SM	MD	LG	XL
Bottom Bracket Drop	27mm	27mm	27mm	27mm
Bottom Bracket Height	347.8mm	347.8mm	347.8mm	347.8mm
Chainstay Length	450.2mm	450.2mm	450.2mm	450.2mm
Front Center	759mm	789mm	820mm	850mm
Head Tube Angle	65.6°	65.6°	65.6°	65.6°
Head Tube Length	114mm	127mm	140mm	152mm
Rake	48mm	49mm	49mm	49mm
Reach	435mm	460mm	485mm	510mm
Seat Tube Angle	77.9°	77.7°	77.5°	77.3°
Seat Tube Length	395mm	420mm	445mm	470mm
Stack	622.7mm	634.5mm	646.3mm	657.2mm
Stack Reach Ratio	1.431	1.379	1.333	1.289
Standover Height	739mm	739mm	739mm	739mm
Trail	117mm	116mm	116mm	116mm
Wheel Kind Front	29	29	29	29
Wheel Kind Rear	29	29	29	29
Wheelbase	1207.8mm	1238.3mm	1268.8mm	1298.9mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2024 Whyte ELyte 140 Works XC?

A 2024 Whyte ELyte 140 Works XC is typically priced around £10,999 GBP when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2024 Whyte ELyte 140 Works XC?

The 2024 Whyte ELyte 140 Works XC may be purchased directly from Whyte.

Q: What size 2024 Whyte ELyte 140 Works XC should I get?

The 2024 Whyte ELyte 140 Works XC comes in sizes SM, MD, LG, XL. After measuring your height, use the size chart below to find the typical Whyte ELyte 140 Works XC size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
