2024

Vitus Nucleus 24

Name: 2024 Vitus Nucleus 24
Brand: Vitus

Cross Country

Compare

Size / 24"", 26"

Manufacturer Website

At a glance

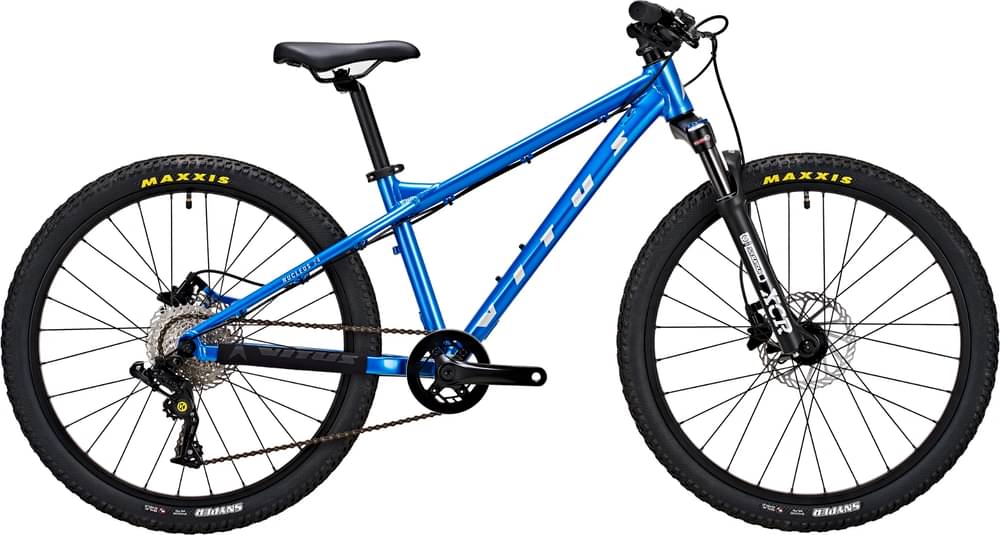

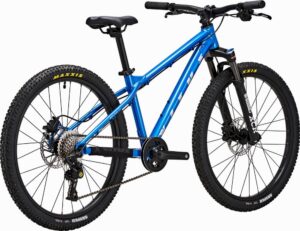

The 2024 Vitus Nucleus 24 is an Cross Country Aluminium / Alloy mountain bike. It is priced at £599 GBP, comes in a range of sizes, including 24"", 26" and has SR Suntour suspension. The bike is part of Vitus's Nucleus range of mountain bikes.

Where To Buy

Vitus

Vitus Nucleus 24

Loading more...

Reviews

Specifications

Frameset

Frame

Nucleus Aluminium - 24"" Wheel, BSA threaded BB, IS disc brake mounts, 135mm x 9mm QR Axle
Fork

Suntour XCR-DS-LO Air Forks, 60mm travel, IS Mount, 100mm x 9mm QR Axle, Lock-Out, 1 1/8"" Steerer
Shock

N/A, N/A

Wheels

Hubs

Vitus KT, K08R, 28 Hole, 6 bolt, 135mm x 9mm QR, 8/9/10 Speed HG Freehub
Wheels

Front: Vitus Shining, BX-32, 24"", 28 Hole, Double Wall, Eyelets, Disc Specific
Rear: Vitus Shining, BX-32, 24", 28 Hole, Double Wall, Eyelets, Disc Specific
Tires

Front: Maxxis Snyper, 24” x 2.0”
Rear: Maxxis Snyper, 24” x 2.0”

Drivetrain

Chain

Box Four 8, 8 Speed
Crank

Prowheel, 140mm Crank Arm, 30T, Double Chain Guard, Reduced Q Factor
Bottom Bracket

Cartridge Square Taper, BSA Threaded, 68mm Shell, English Thread, 113.5mm Axle Length
Front Derailleur

N/A, N/A
Rear Derailleur

Box Four 8, 8 Speed w/ Clutch
Shifters

Box Four 8, 8 Speed

Components

Brakeset

Clarks Clout Kids Disc Brake, Hydraulic, Reach Adjust
Handlebar

Vitus 6061 Aluminium, 15mm Rise, 9° Back Sweep, 620mm Wide
Saddle

Vitus, Kids Specific, Steel Rail
Seatpost

Vitus 6061 Aluminium, 27.2mm x 250mm, 20mm Offset
Stem

Vitus 6061 Aluminium, 40mm Length, +/- 3°
Grips

Vitus, 110mm, Closed End
Headset

Neco No:11G, Semi-Cartridge, 1.5mm Top Cover, Height 9.8mm

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	24"	26"
Bottom Bracket Drop	45mm	40mm
Chainstay Length	415mm	430mm
Crank Length	140mm	160mm
Front Center	444mm	461.5mm
Handlebar Width	420mm	440mm
Head Tube Angle	67°	67°
Head Tube Length	90mm	105mm
Rake	41mm	38mm
Reach	342mm	396mm
Seat Tube Angle	72.5°	73°
Seat Tube Length	340mm	356mm
Stack	487.3mm	553.1mm
Stack Reach Ratio	1.425	1.397
Stem Length	60mm	60mm
Top Tube Length	495.96mm	565.1mm
Wheel Kind Front	24	26
Wheel Kind Rear	24	26
Wheelbase	966.96mm	1071.1mm
		303
		116

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2024 Vitus Nucleus 24?

A 2024 Vitus Nucleus 24 is typically priced around £599 GBP when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2024 Vitus Nucleus 24?

The 2024 Vitus Nucleus 24 may be purchased directly from Vitus.

Q: What size 2024 Vitus Nucleus 24 should I get?

The 2024 Vitus Nucleus 24 comes in sizes 24"", 26". After measuring your height, use the size chart below to find the typical Vitus Nucleus 24 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
