2024

Diamondback Release 29 1

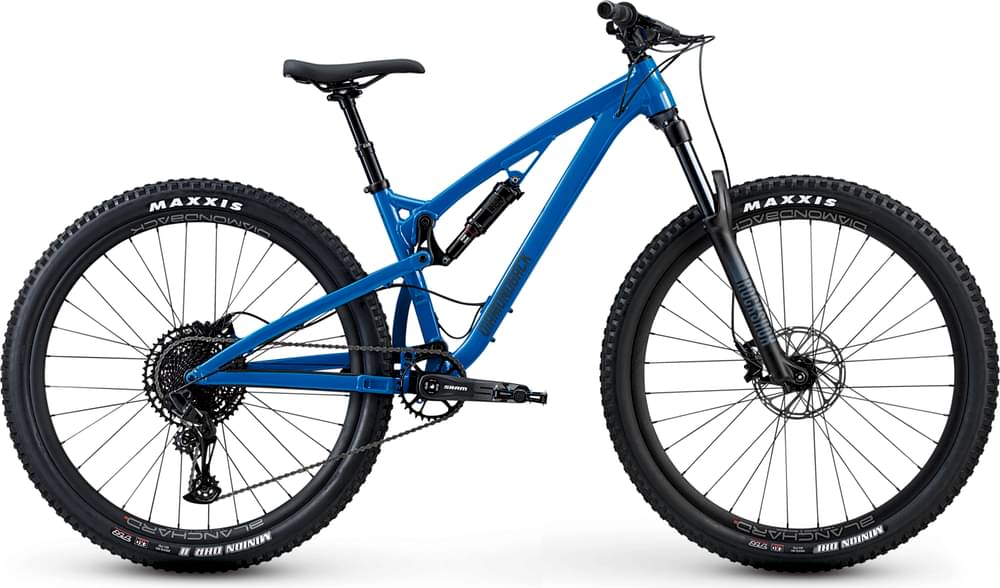

Name: 2024 Diamondback Release 29 1
Brand: Diamondback

Trail

Compare

Size / SM, MD, LG, XL

Manufacturer Website

At a glance

The 2024 Diamondback Release 29 1 is an Trail mountain bike. It is priced at $2,850 USD, comes in a range of sizes, including SM, MD, LG, XL, has RockShox suspension and a SRAM drivetrain. The bike is part of Diamondback's Release range of mountain bikes.

Where To Buy

Diamondback

Diamondback Release 29 1

Loading more...

Reviews

Specifications

Frameset

Frame

Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5"" Tapered Headtube
Fork

RockShox 35 Silver, 140mm of Travel, TurnKey Lock-Out, 15x110mm,1.5"" Tapered Steer
Shock

RockShox Monarch R, 200x57mm

Wheels

Hubs

32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette
Wheels

Diamondback Blanchard 28R, Taped for Tubeless, 32h
Spokes

14g Stainless Steel
Tires

Maxxis Minion DHF 29x2.3"" EXO, TR (Tubeless Ready), Folding / Maxxis Minion DHR II 29x2.3" EXO, TR (Tubeless Ready), Folding

Drivetrain

Chain

SRAM SX Eagle, 12 Speed
Crank

SRAM SX w/Steel 32T Direct Mount
Bottom Bracket

SRAM DUB
Rear Derailleur

SRAM SX Eagle, 12 Speed
Shifters

SRAM SX Eagle, 12 Speed

Components

Brakeset

SRAM Level, 180mm Front / 180mm Rear
Handlebar

DB35 Aluminum 780mm Wide, 15mm Rise, 35mm Bar Bore
Saddle

WTB Volt
Seatpost

Kind Shock EXA Form 900i, Internal Dropper, 31.6mm with Westy Lever
Stem

DB35 Aluminum 35mm Reach, 35mm Bar Bore
Grips

DB Lock-On Grip
Headset

FSA No. 57 Sealed Cartridge

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	SM	MD	LG	XL
Bottom Bracket Drop	25mm	25mm	25mm	25mm
Bottom Bracket Height	348mm	348mm	348mm	348mm
Chainstay Length	446mm	446mm	446mm	446mm
Crank Length	170mm	175mm	175mm	175mm
Front Center	689mm	714mm	740mm	766mm
Front Travel	140mm	140mm	140mm	140mm
Handlebar Width	780mm	780mm	780mm	780mm
Head Tube Angle	67.7°	67.7°	67.7°	67.7°
Head Tube Length	100mm	100mm	110mm	120mm
Rake	47mm	47mm	48mm	47mm
Reach	402mm	427mm	449mm	472mm
Seat Tube Angle	73°	73°	73°	73°
Seat Tube Length	394mm	432mm	483mm	533mm
Stack	599mm	599mm	608mm	617mm
Stack Reach Ratio	1.49	1.403	1.354	1.307
Standover Height	775mm	784mm	791mm	804mm
Stem Length	40mm	40mm	40mm	40mm
Top Tube Length	585mm	610mm	635mm	660mm
Trail	103mm	103mm	102mm	103mm
Wheel Kind Front	29	29	29	29
Wheel Kind Rear	29	29	29	29
Wheelbase	1134mm	1159mm	1185mm	1211mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2024 Diamondback Release 29 1?

A 2024 Diamondback Release 29 1 is typically priced around $2,850 USD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2024 Diamondback Release 29 1?

The 2024 Diamondback Release 29 1 may be purchased directly from Diamondback.

Q: What size 2024 Diamondback Release 29 1 should I get?

The 2024 Diamondback Release 29 1 comes in sizes SM, MD, LG, XL. After measuring your height, use the size chart below to find the typical Diamondback Release 29 1 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
