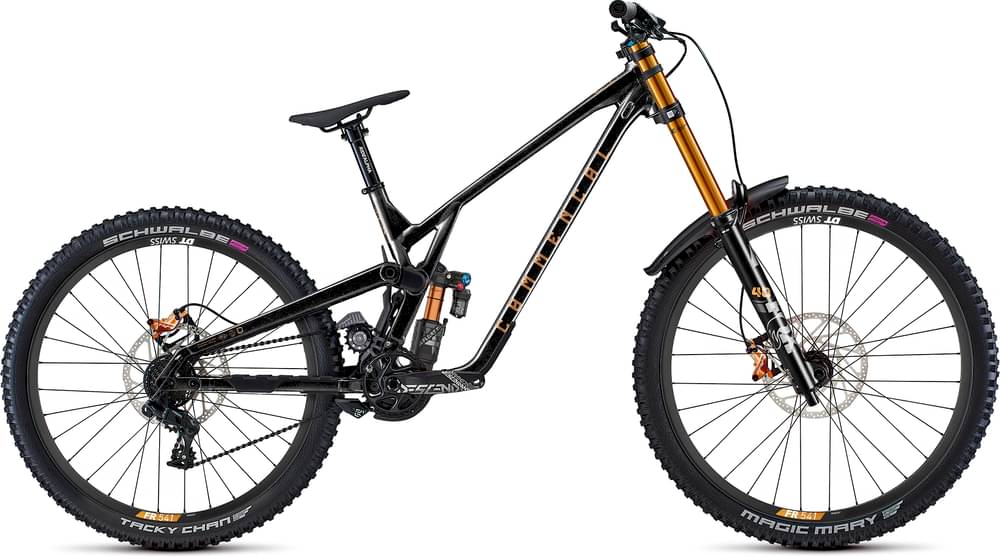

Commencal SUPREME DH V5 SIGNATURE LTD MOTO STYLE
Commencal Supreme 202410636
DownhillSize / SM High, SM Low, MD High, MD Low, LG High, LG Low, XL High, XL Low
Manufacturer WebsiteAt a glance
The 2024 Commencal SUPREME DH V5 SIGNATURE LTD MOTO STYLE is an Downhill Aluminium / Alloy mountain bike. It is priced at $10,636 AUD, comes in a range of sizes, including SM High, SM Low, MD High, MD Low, LG High, LG Low, XL High, XL Low, has Fox suspension and a SRAM drivetrain. The bike is part of Commencal's Supreme range of mountain bikes.Where To Buy
Commencal
Commencal SUPREME DH V5 SIGNATURE LTD MOTO STYLEReviews
Specifications
Frameset
-
FrameSUPREME DH V5 29/27, 220 mm travel, 27/29'', Alloy 6066, triple butted tubes, T4, T6.
-
ForkFOX 40 Factory, 203 mm travel, 29"", Grip X2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 spacers. More information here
-
ShockFOX Float X2 Factory, 250 x 75 mm, HSC, LSC, HSR, LSR, 0.3 Spacer x3, More information here
Wheels
-
HubsDT SWISS DT 350
Rear: 32h, sealed bearings, 12 x 157 mm, 36t, SRAM XD - Front: 32h, sealed bearings, 20 x 110 mm Boost -
WheelsDT SWISS FR 541
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width -
TiresRear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5''x2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29""x2.4", Super DH, Addix Ultra Soft, Tubeless Easy
Drivetrain
-
ChainSRAM PC 1130, 11s
-
CrankSRAM Descendant DH, 165 mm crank arms, DUB, Chainring: SRAM Descendant DH, 34t
-
Bottom BracketPress Fit BB 107
-
Rear DerailleurSRAM GX Eagle, 7s
-
ShiftersSRAM GX DH, 7s
Components
-
BrakesetTRP DH-R EVO, 4 pistons, resin pads, Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm width, Motostyle braking: front brake with right lever / rear brake with left lever
-
HandlebarBURGTEC Ride Wide Alloy, 31.8 mm, 800 mm width, 30 mm rise on S / M / L / XL
-
SaddleFIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails
-
SeatpostRIDE ALPHA, 31.6 mm, 250 mm
-
StemBURGTEC MK3, 45 mm extension, direct mount, 31.8 mm
-
GripsBURGTEC Bartender Pro Greg Minnaar Signature, Single clamp, black
-
HeadsetCANECREEK ZS56/ZS56 SERIE 40, Alloy cups, sealed bearings
Geometry
| Frame Size | SM | SM | MD | MD | LG | LG | XL | XL |
| Bottom Bracket Drop | 3mm | 2.5mm | 3mm | 2.5mm | 3mm | 2.5mm | 3mm | 2.5mm |
| Chainstay Length | 440mm | 442mm | 452mm | 454mm | 452mm | 454mm | 452mm | 454mm |
| Front Center | 804mm | 804mm | 829mm | 829mm | 857mm | 857mm | 877mm | 877mm |
| Head Tube Angle | 63.7° | 63.3° | 63.7° | 63.3° | 63.7° | 63.3° | 63.7° | 63.3° |
| Head Tube Length | 112mm | 112mm | 112mm | 112mm | 112mm | 112mm | 112mm | 112mm |
| Rake | 52mm | 52mm | 52mm | 52mm | 52mm | 52mm | 52mm | 52mm |
| Reach | 435mm | 431mm | 460mm | 456mm | 488mm | 484mm | 508mm | 504mm |
| Seat Tube Angle | 67.5° | 67.1° | 67.5° | 67.1° | 67.5° | 67.1° | 67.5° | 67.1° |
| Seat Tube Length | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm |
| Stack | 646mm | 649mm | 646mm | 649mm | 646mm | 649mm | 646mm | 649mm |
| Stack Reach Ratio | 1.485 | 1.506 | 1.404 | 1.423 | 1.324 | 1.341 | 1.272 | 1.288 |
| Top Tube Length | 594mm | 596mm | 619mm | 621mm | 647mm | 649mm | 667mm | 669mm |
| Trail | 134mm | 140mm | 134mm | 140mm | 134mm | 140mm | 134mm | 140mm |
| Wheel Kind Front | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 |
| Wheel Kind Rear | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 |
| Wheelbase | 1244mm | 1246mm | 1281mm | 1283mm | 1309mm | 1311mm | 1329mm | 1331mm |
FAQ
Q: How much is a 2024 Commencal SUPREME DH V5 SIGNATURE LTD MOTO STYLE?
A 2024 Commencal SUPREME DH V5 SIGNATURE LTD MOTO STYLE is typically priced around $10,636 AUD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.
Q: Where to buy a 2024 Commencal SUPREME DH V5 SIGNATURE LTD MOTO STYLE?
The 2024 Commencal SUPREME DH V5 SIGNATURE LTD MOTO STYLE may be purchased directly from Commencal.
Q: What size 2024 Commencal SUPREME DH V5 SIGNATURE LTD MOTO STYLE should I get?
The 2024 Commencal SUPREME DH V5 SIGNATURE LTD MOTO STYLE comes in sizes SM High, SM Low, MD High, MD Low, LG High, LG Low, XL High, XL Low. After measuring your height, use the size chart below to find the typical Commencal SUPREME DH V5 SIGNATURE LTD MOTO STYLE size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.
| Rider Height (cm) | Rider Height (in) | Frame Size |
|---|---|---|
| 148cm - 158cm | 4'10" - 5'2" | XS |
| 158cm - 168cm | 5'2" - 5'6" | S |
| 168cm - 178cm | 5'6" - 5' 10" | M |
| 178cm - 185cm | 5'10" - 6'1" | L |
| 185cm - 193cm | 6'1" - 6'4" | XL |
| 193cm - 198cm | 6'4" - 6'6" | XXL |
