2024

Canyon Spectral:ON CF 8

Name: 2024 Canyon Spectral:ON CF 8
Brand: Canyon

E-Mountain Enduro

Compare

Size / SM, MD, LG, XL

Manufacturer Website

At a glance

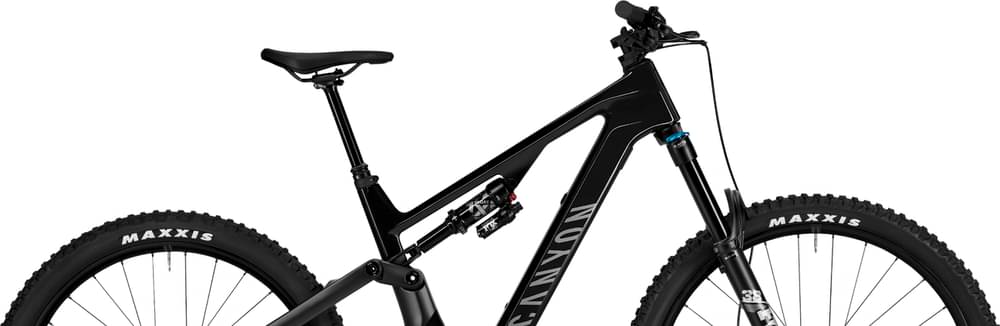

The 2024 Canyon Spectral:ON CF 8 is a E-Mountain and Enduro Carbon mountain bike. It is priced at $5,999 USD, comes in a range of sizes, including SM, MD, LG, XL, has Fox suspension and a Shimano drivetrain. The bike is part of Canyon's Spectral:ON range of mountain bikes. As a pedal-assisted e-mountain bike, the Canyon Spectral:ON CF 8 is powered by a Shimano EP801 motor and a Canyon BT0003-01 720Wh, Equipped on all Size S models and standard on Spectral:ON CF 7 and Torque:ON CF 8., Canyon BT0004-01 900Wh, Standard battery for Sizes M-XL., 900Wh only compatible with frame sizes M-XL. battery.

Where To Buy

Canyon

Canyon Spectral:ON CF 8

Loading more...

Reviews

Specifications

Frameset

Frame

Canyon Spectral:ON CF, A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time., Axle dimension: 12x148 mm, Material: Carbon (CF), Weight: 7.93 lbs
Fork

Fox 38 Rhythm 160mm 29, Axle dimension: 15x110 mm, Stanchion Diameter: 38 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8"" - 1,5", Offset: 44 mm, Weight: 4.81 lbs
Shock

Fox Float X Performance Evolution, Tune: CL, RM, Rezi LM, Weight: 0.62 lbs

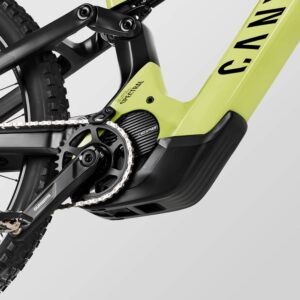

Motor

Shimano EP801
Battery

Canyon BT0003-01 720Wh, Equipped on all Size S models and standard on Spectral:ON CF 7 and Torque:ON CF 8., Canyon BT0004-01 900Wh, Standard battery for Sizes M-XL., 900Wh only compatible with frame sizes M-XL.

Wheels

Wheels

DT Swiss HLN350 15x110 30mm Centerlock, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Weight: 2.26 lbs, DT Swiss HLN350 12x142 30mm Centerlock, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Weight: 2.77 lbs
Tires

Maxxis Assegai, Width: 2.5"", Weight: 2.36 lbs, Maxxis Minion DHR II 27,5" x 2.60 WT, Width: 2.6", Weight: 1.98 lbs

Drivetrain

Chain

Shimano CN-M6100
Crank

Shimano Steps
Bottom Bracket

STEPS, press-fit
Rear Derailleur

Shimano Deore XT M8100, Cage length: long, Weight: 0.63 lbs
Shifters

Shimano SLX M7100, Weight: 0.32 lbs

Components

Brakeset

Shimano SLX M7120, Number of pistons: 2
Handlebar

Canyon:ON HB0057 Riser bar, Canyon-developed E-MTB handlebar for top control levels on the trail., Clamping diameter: 35,0 mm, Width: 780 mm, Rise: 30 mm
Saddle

Fizik Terra Aidon X5, Gender: Unisex, Weight: 0.60 lbs
Seatpost

Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.25 lbs
Stem

Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8"", Clamping diameter: 35,0 mm
Grips

Canyon Lock-On

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	SM	MD	LG	XL
Bottom Bracket Drop	32mm	32mm	32mm	32mm
Chainstay Length	440mm	440mm	440mm	440mm
Crank Length	165mm	165mm	165mm	165mm
Front Center	756mm	785mm	814mm	843mm
Front Travel	160mm	160mm	160mm	160mm
Handlebar Width	760mm	780mm	780mm	780mm
Head Tube Angle	65.5°	65.5°	65.5°	65.5°
Head Tube Length	115mm	125mm	135mm	145mm
Rake	43mm	43mm	43mm	43mm
Reach	435mm	460mm	485mm	510mm
Rear Travel	155mm	155mm	155mm	155mm
Seat Tube Angle	76.5°	76.5°	76.5°	76.5°
Seat Tube Length	420mm	440mm	460mm	480mm
Stack	630mm	639mm	648mm	657mm
Stack Reach Ratio	1.448	1.389	1.336	1.288
Standover Height	809mm	814mm	820mm	825mm
Stem Length	45mm	45mm	45mm	45mm
Top Tube Length	586mm	613mm	641mm	668mm
Trail	123mm	123mm	123mm	123mm
Wheel Kind Front	29	29	29	29
Wheel Kind Rear	27.5	27.5	27.5	27.5
Wheelbase	1194mm	1223mm	1252mm	1281mm

Have some feedback or spotted an issue? Let us know.

FAQ

Q: How much is a 2024 Canyon Spectral:ON CF 8?

A 2024 Canyon Spectral:ON CF 8 is typically priced around $5,999 USD when new. Be sure to shop around for the best price, and also look to the used market for a great deal.

Q: Where to buy a 2024 Canyon Spectral:ON CF 8?

The 2024 Canyon Spectral:ON CF 8 may be purchased directly from Canyon.

Q: What size 2024 Canyon Spectral:ON CF 8 should I get?

The 2024 Canyon Spectral:ON CF 8 comes in sizes SM, MD, LG, XL. After measuring your height, use the size chart below to find the typical Canyon Spectral:ON CF 8 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
