2024

BiXS Lane 160

Name: 2024 BiXS Lane 160
Brand: BiXS

Enduro

Compare

Size / A, B, C, D, E, F, G, H, I, J, K, LG, MD, Körpergrösse, Rahmengrösse

Manufacturer Website

At a glance

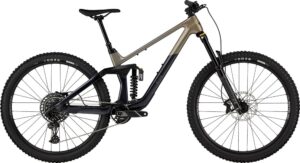

The 2024 BiXS Lane 160 is an Enduro Carbon mountain bike. It comes in a range of sizes, including A, B, C, D, E, F, G, H, I, J, K, LG, MD, Körpergrösse, Rahmengrösse, has Fox suspension and a SRAM drivetrain. The bike is part of BiXS's LANE range of mountain bikes.

Where To Buy

BiXS

BiXS Lane 160

Loading more...

Reviews

Specifications

Frameset

Frame

ENDURO GEOMETRY, FULL CARBON FRAME, 160mm TRAVEL, DROPOUT 148x12mm BOOST, 29""
Fork

FOX 38 FLOAT PERFORMANCE, 15x110mm AXLE, TAPERED, GRIP2, TRAVEL: 170mm, 4-WAY ADJUSTABILITY
Shock

FOX FLOAT X2 PERFORMANCE, 2 POSITION LEVER 230x65, HARDWARE: 30/20mmx8mm

Wheels

Hubs

DT SWISS WHEELSET SPLINE E-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE
Wheels

DT SWISS WHEELSET SPLINE E-1900, 28 HOLES, INNER WIDTH 30mm, 29""
Tires

ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4""

Drivetrain

Chain

SRAM CN-GX EAGLE 12-SPEED
Crank

SRAM GX EAGLE BOOST, DUB, S: 30, OTHERS 32 TEETH
Rear Derailleur

SRAM GX EAGLE AXS, 12-SPEED
Shifters

SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED

Components

Brakeset

SHIMANO XT BR-M8120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:180mm ROTORS, ICE TECH
Handlebar

RACE FACE TURBINE R, 780mm/800mm, 20mm RISE, 8° BACKSWEEP, 35mm
Saddle

ERGON SM10 ENDURO
Seatpost

KIND SHOCK LEV INTEGRA, S: 100mm, M: 125mm, L: 150mm, XL: 175mm TRAVEL, SHIMANO REMOTE, 31.6mm
Stem

RACE FACE AEFFECT R, 0°ANGLE, 35mm CLAMP
Headset

ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5"" BLOCK LOCK

Have some feedback or spotted an issue? Let us know.

Geometry

Frame Size	A	B	C	D	E	F	G	H	I	J	K	LG	MD	Körpergrösse	Rahmengrösse
Wheel Kind Front	29	29	29	29	29	29	29	29	29	29	29	29	29	29	29
Wheel Kind Rear	29	29	29	29	29	29	29	29	29	29	29	29	29	29	29

Have some feedback or spotted an issue? Let us know.

FAQ

Q: Where to buy a 2024 BiXS Lane 160?

The 2024 BiXS Lane 160 may be purchased directly from BiXS.

Q: What size 2024 BiXS Lane 160 should I get?

The 2024 BiXS Lane 160 comes in sizes A, B, C, D, E, F, G, H, I, J, K, LG, MD, Körpergrösse, Rahmengrösse. After measuring your height, use the size chart below to find the typical BiXS Lane 160 size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm)	Rider Height (in)	Frame Size
148cm - 158cm	4'10" - 5'2"	XS
158cm - 168cm	5'2" - 5'6"	S
168cm - 178cm	5'6" - 5' 10"	M
178cm - 185cm	5'10" - 6'1"	L
185cm - 193cm	6'1" - 6'4"	XL
193cm - 198cm	6'4" - 6'6"	XXL
