BiXS Lane-E26 Green - Anthrazit
BiXS LANE-E26 2024 E-Mountain EnduroSize / A, B, C, D, E, F, G, H, I, J, K, LG
Manufacturer WebsiteAt a glance
The 2024 BiXS Lane-E26 Green - Anthrazit is a E-Mountain and Enduro Aluminium / Alloy mountain bike. It comes in a range of sizes, including A, B, C, D, E, F, G, H, I, J, K, LG, has Marzocchi suspension and a SRAM drivetrain. The bike is part of BiXS's LANE-E26 range of mountain bikes. As a pedal-assisted e-mountain bike, the BiXS Lane-E26 Green - Anthrazit is powered by a YAMAHA PW-X 3 SERIES, 250 WATT motor and a SIMPLO, 36V, 630WH battery.Where To Buy
BiXS
BiXS Lane-E26 Green - AnthrazitReviews
Specifications
Frameset
-
FrameE-ENDURO GEOMETRY, ALLOY 6061, 160MM TRAVEL, ALLOY ROCKER, DROPOUT 148X12MM BOOST, 29""
-
ForkMARZOCCHI Z1 AIR, 15X110MM AXLE, TAPERED, GRIP, TRAVEL: 170MM, SWEEP ADJ.
-
ShockFOX FLOAT X PERFORMANCE, 2 POSITION LEVER, 205X65, TRUNNION MOUNT, HARDWARE: 20MMX8MM
-
MotorYAMAHA PW-X 3 SERIES, 250 WATT
-
BatterySIMPLO, 36V, 630WH
Wheels
-
HubsSUNRINGLE WHEELSET DUROC 37SD COMP, 32 HOLES, 12X148MM BOOST, THRU AXLE
-
TiresONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29X2.5"", GRC
Drivetrain
-
ChainSRAM CN-SX EAGLE
-
CrankSRAM EX1 EAGLE X-SYNC, 34 TEETH
-
Rear DerailleurSRAM GX EAGLE, 12-SPEED
-
ShiftersSRAM SL NX EAGLE SINGLE CLICK TRIGGER 12-SPEED
Components
-
BrakesetSHIMANO BR-M6120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203MM, R:203MM ROTORS
-
HandlebarBIXS RIZER BAR, 780MM, 9° BACKSWEEP, 15MM RISE, 35MM
-
SaddleBIXS VL-3575
-
SeatpostKIND SHOCK RAGEI, S: 100MM, M: 125MM, L: 150MM, XL: 170MM TRAVEL, WESTY LEVER REMOTE, 31.6MM
-
StemBIXS 0°ANGLE, 35MM CLAMP
-
HeadsetACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5"" BLOCK LOCK
Geometry
| Frame Size | A | B | C | D | E | F | G | H | I | J | K | LG |
| Wheel Kind Front | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 |
| Wheel Kind Rear | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 | 29 |
FAQ
Q: Where to buy a 2024 BiXS Lane-E26 Green - Anthrazit?
The 2024 BiXS Lane-E26 Green - Anthrazit may be purchased directly from BiXS.
Q: What size 2024 BiXS Lane-E26 Green - Anthrazit should I get?
The 2024 BiXS Lane-E26 Green - Anthrazit comes in sizes A, B, C, D, E, F, G, H, I, J, K, LG. After measuring your height, use the size chart below to find the typical BiXS Lane-E26 Green - Anthrazit size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.
| Rider Height (cm) | Rider Height (in) | Frame Size |
|---|---|---|
| 148cm - 158cm | 4'10" - 5'2" | XS |
| 158cm - 168cm | 5'2" - 5'6" | S |
| 168cm - 178cm | 5'6" - 5' 10" | M |
| 178cm - 185cm | 5'10" - 6'1" | L |
| 185cm - 193cm | 6'1" - 6'4" | XL |
| 193cm - 198cm | 6'4" - 6'6" | XXL |
Discussion
0 RepliesWant more MTB in your mailbox?
The latest on mountain bikes delivered straight to your mailbox.
More Bikes in Range View All
More E-Mountain Bikes View All

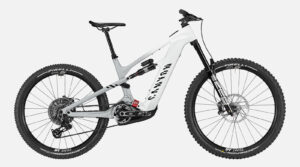

Canyon Strive:ON CFR LTD
