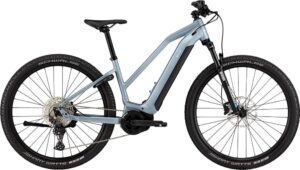

Image of BiXS Access-E20 Dark Silver
2024

BiXS Access-E20 Dark Silver

BiXS ACCESS-E20 2024

E-Mountain Cross Country
Compare

Size / MD, LG, XL

Manufacturer Website

At a glance

The 2024 BiXS Access-E20 Dark Silver is a E-Mountain and Cross Country Aluminium / Alloy mountain bike. It comes in a range of sizes, including MD, LG, XL, has SR Suntour suspension and a Shimano drivetrain. The bike is part of BiXS's ACCESS-E20 range of mountain bikes. As a pedal-assisted e-mountain bike, the BiXS Access-E20 Dark Silver is powered by a YAMAHA PW-X 2 SERIES, 250 WATT motor and a SIMPLO, 36V, 630Wh battery.

Where To Buy

Reviews

Specifications

Frameset
  • Frame
    E-ACTIVE GEOMETRY SUV, ALLOY 6061 HYDROFORMED D.B. TUBES, Hardtail, DROPOUT 148x12mm BOOST, 29""
  • Fork
    SUNTOUR XCR34 AIR 29"", LOR, 15x110mm AXLE, TAPERED, 100mm TRAVEL, REBOUND LOCKOUT
  • Motor
    YAMAHA PW-X 2 SERIES, 250 WATT
  • Battery
    SIMPLO, 36V, 630Wh
Wheels
  • Hubs
    SHIMANO FH-TC500-HM-B, 32 HOLES, 12x148mm BOOST THRU AXLE
  • Wheels
    ALEXRIMS EM-30, 32 HOLES, INNER WIDTH 30mm, 29""
  • Tires
    SCHWALBE JONNY WATTS PERFORMANCE RACE GUARD, 29x2.35""
Drivetrain
  • Chain
    SHIMANO CN-E8000 FOR E-Bike 11-SPEED
  • Crank
    FSA CK-320/ISIS, 34 TEETH
  • Rear Derailleur
    SHIMANO DEORE RD-M5100 SGS SHADOW PLUS DESIGN, 11-SPEED
  • Shifters
    SHIMANO DEORE SL-M5100
Components
  • Brakeset
    SHIMANO BR-MT410, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:200mm, R:180mm ROTORS
  • Handlebar
    BIXS HB-RB12W RIZER BAR, 760mm, 9°ANGLE, 15mm RISE, 31.8mm
  • Saddle
    ERGON SFC30
  • Seatpost
    BIXS SP-719, M: 350mm, OTHERS: 400mm, 31.6mm
  • Stem
    BIXS AS-M03, 0°ANGLE, 31.8mm CLAMP
  • Headset
    FSA NO.55R 1.5"" / 558

Geometry

Frame Size MD LG XL
Bottom Bracket Drop 64mm 64mm 64mm
Bottom Bracket Height 310mm 310mm 310mm
Chainstay Length 480mm 480mm 480mm
Crank Length 170mm 170mm 170mm
Front Center 708mm 719mm 733mm
Head Tube Angle 68° 68° 68°
Head Tube Length 135mm 140mm 150mm
Rake 52mm 53mm 53mm
Reach 410mm 419mm 429mm
Seat Tube Angle 73° 73° 73°
Seat Tube Length 430mm 480mm 530mm
Stack 655mm 659mm 669mm
Stack Reach Ratio 1.598 1.573 1.559
Stem Length 45mm 45mm 45mm
Top Tube Length 610mm 621mm 634mm
Trail 95mm 94mm 94mm
Wheel Kind Front 29 29 29
Wheel Kind Rear 29 29 29
Wheelbase 1181mm 1192mm 1206mm

FAQ

Q: Where to buy a 2024 BiXS Access-E20 Dark Silver?

The 2024 BiXS Access-E20 Dark Silver may be purchased directly from BiXS.

Q: What size 2024 BiXS Access-E20 Dark Silver should I get?

The 2024 BiXS Access-E20 Dark Silver comes in sizes MD, LG, XL. After measuring your height, use the size chart below to find the typical BiXS Access-E20 Dark Silver size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm) Rider Height (in) Frame Size
148cm - 158cm 4'10" - 5'2" XS
158cm - 168cm 5'2" - 5'6" S
168cm - 178cm 5'6" - 5' 10" M
178cm - 185cm 5'10" - 6'1" L
185cm - 193cm 6'1" - 6'4" XL
193cm - 198cm 6'4" - 6'6" XXL
