CTM Wire Pro
CTM Wire 2022 E-Mountain Cross CountryColour / Grey
Size / MD, LG, XL
Weight / 52 lb 7.5 oz (23,800 g)
Manufacturer WebsiteAt a glance

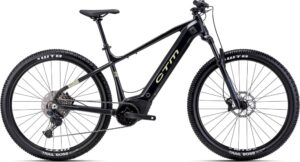

The 2022 CTM Wire Pro is a E-Mountain and Cross Country Aluminium / Alloy mountain bike. It sports 29" wheels, comes in a range of sizes, including MD, LG, XL, has RockShox suspension and a Shimano drivetrain. The bike is part of CTM's Wire range of mountain bikes. As a pedal-assisted e-mountain bike, the CTM Wire Pro is powered by a Bafang MaxDrive M500, 250W, 95 Nm max torque motor and a Samsung lithium-ion, 36V, 17.5Ah, 630 Wh battery.- Internal cable routing
- European price: 2699.99 EUR
Where To Buy
CTM
CTM Wire ProReviews
Specifications
Frameset
-
Frame6061 alloy
-
ForkRockShox Recon Silver RL, Solo Air spring, 47mm offset, 120mm
-
MotorBafang MaxDrive M500, 250W, 95 Nm max torque
-
BatterySamsung lithium-ion, 36V, 17.5Ah, 630 Wh
Wheels
-
HubsShimano MT400, 110x15mm Boost front, 148x12mm Boost rear with HG driver
-
WheelsWTB ST i29 TCS 2.0, 29mm inner width, 32 hole
-
Wheel Size29"
-
TiresWTB Trail Boss, Comp, 29"" x 2.4"
Drivetrain
-
Chain475mm, None, Bafang, 38 tooth, KMC X11e, 11-speed
-
CrankBafang, 170mm length
-
Bottom Bracket60mm drop
-
Rear DerailleurShimano Deore M5100, 11-speed
-
ShiftersShimano Deore M5100, 11-speed
Components
-
BrakesetShimano MT420, 4-piston, Shimano RT54 rotors, Shimano MT420
-
HandlebarCTM Riser, 720mm width, 31.8mm clamp diameter
-
SaddleSelle Royal Vivo Ergo Man
-
SeatpostKS ExaForm KSP900 dropper, 31.6mm, Single bolt, 31.6mm, Single bolt
Drop:
125mm (MD)
150mm (LG/XL) -
StemCTM LCS, 80mm length, 31.8mm bar clamp
-
HeadsetNECO H383
FAQ
Q: Where to buy a 2022 CTM Wire Pro?
The 2022 CTM Wire Pro may be purchased directly from CTM.
Q: How much does a 2022 CTM Wire Pro weigh?
A 2022 CTM Wire Pro weights 52 lb 7.5 oz (23,800 g).
Q: What size wheels does the 2022 CTM Wire Pro have?
The 2022 CTM Wire Pro has 29" wheels.
Q: What size 2022 CTM Wire Pro should I get?
The 2022 CTM Wire Pro comes in sizes MD, LG, XL. After measuring your height, use the size chart below to find the typical CTM Wire Pro size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.
| Rider Height (cm) | Rider Height (in) | Frame Size |
|---|---|---|
| 148cm - 158cm | 4'10" - 5'2" | XS |
| 158cm - 168cm | 5'2" - 5'6" | S |
| 168cm - 178cm | 5'6" - 5' 10" | M |
| 178cm - 185cm | 5'10" - 6'1" | L |
| 185cm - 193cm | 6'1" - 6'4" | XL |
| 193cm - 198cm | 6'4" - 6'6" | XXL |
