Image of Merida eOne-Twenty 900E
2018

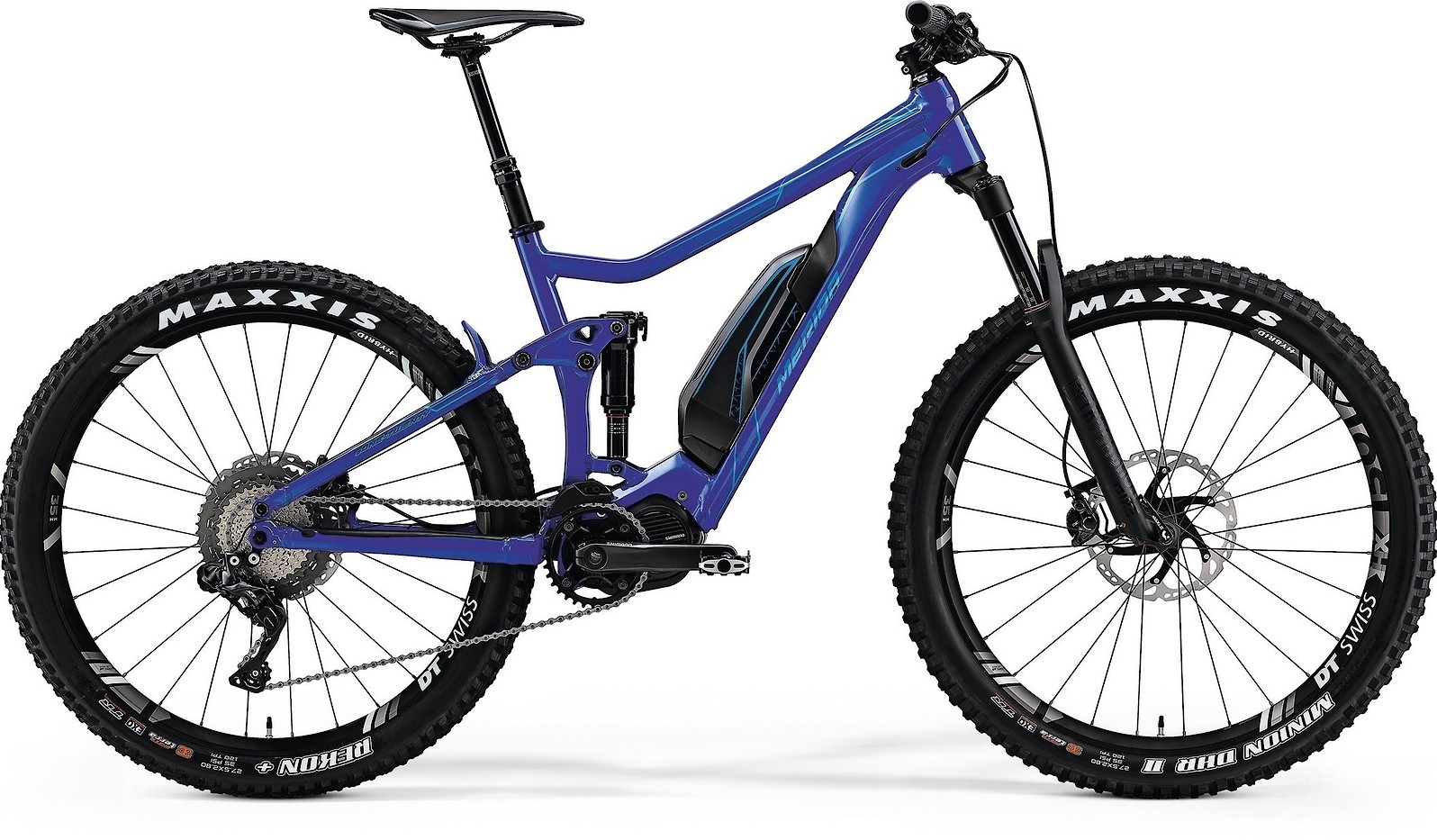

Merida eOne-Twenty 900E

Merida eONE-TWENTY 2018

E-Mountain Trail

Colour / Blue/sky blue, Matte black/silver

Size / S, M, L, XL

Weight / 48 lb 6.3 oz (21,950 g)

Manufacturer Website

At a glance

The 2018 Merida eOne-Twenty 900E is a E-Mountain and Trail Aluminium / Alloy mountain bike. It sports 27.5" wheels, comes in a range of sizes, including S, M, L, XL, has RockShox suspension and a Shimano drivetrain. The bike is part of Merida's eONE-TWENTY range of mountain bikes. As a pedal-assisted e-mountain bike, the Merida eOne-Twenty 900E is powered by a Shimano E8000 motor and a Shimano E8010 with Shimano E6000 charger, 500 Wh battery.

Internal cable routing with ‘Smart Entry’ cable access, Battery charges 100% after 5 hours, 80% after 2.5 hours, Battery lifetime of 1,000 charging cycles,

Where To Buy

Reviews

Specifications

Frameset
  • Frame
    Prolite 66 triple butted aluminum (6066) with internal cable routing
  • Fork
    RockShox Pike RCT3, remote lockout, 130mm
  • Shock
    RockShox Deluxe RT-A2, remote lockout
  • Motor
    Shimano E8000
  • Battery
    Shimano E8010 with Shimano E6000 charger, 500 Wh
Wheels
  • Hubs
    DT Swiss HX 1501, Boost front and rear
  • Wheels
    DT Swiss HX 1501 Spline One 35
  • Wheel Size
    27.5"
  • Spokes
    DT Swiss
  • Tires
    Front: Maxxis DHR, 2.8" folding
    Rear: Maxxis Rekon, 2.8" folding
Drivetrain
  • Chain
    439.5mm, Shimano SM-CDE 80, Shimano CRE80-B, 34 tooth, KMC X11e
  • Crank
    Shimano
  • Bottom Bracket
    27.5mm drop
  • Rear Derailleur
    Shimano XT Di2 RD-M8050
  • Shifters
    Shift Switch XT Di2, 11-speed
Components
  • Brakeset
    Shimano XT with Ice-Tech 203mm rotors, 6-bolt, Shimano XT
  • Handlebar
    Merida Expert II, 780mm width, 20mm rise, 35mm diameter, 6° sweep
  • Saddle
    Merida Expert
  • Seatpost
    RockShox Reverb Stealth, 30.9mm, Standard single bolt, 30.9mm, Standard single bolt
  • Stem
    Merida Expert SS, 55mm length
  • Headset
    FSA No.55EP

FAQ

Q: Where to buy a 2018 Merida eOne-Twenty 900E?

The 2018 Merida eOne-Twenty 900E may be purchased directly from Merida.

Q: How much does a 2018 Merida eOne-Twenty 900E weigh?

A 2018 Merida eOne-Twenty 900E weights 48 lb 6.3 oz (21,950 g).

Q: What size wheels does the 2018 Merida eOne-Twenty 900E have?

The 2018 Merida eOne-Twenty 900E has 27.5" wheels.

Q: What size 2018 Merida eOne-Twenty 900E should I get?

The 2018 Merida eOne-Twenty 900E comes in sizes S, M, L, XL. After measuring your height, use the size chart below to find the typical Merida eOne-Twenty 900E size for your height. Remember that these sizes are a general guide and bike sizes can vary between riders and bikes. The best way to find your size is to go for a test ride.

Rider Height (cm) Rider Height (in) Frame Size
148cm - 158cm 4'10" - 5'2" XS
158cm - 168cm 5'2" - 5'6" S
168cm - 178cm 5'6" - 5' 10" M
178cm - 185cm 5'10" - 6'1" L
185cm - 193cm 6'1" - 6'4" XL
193cm - 198cm 6'4" - 6'6" XXL
